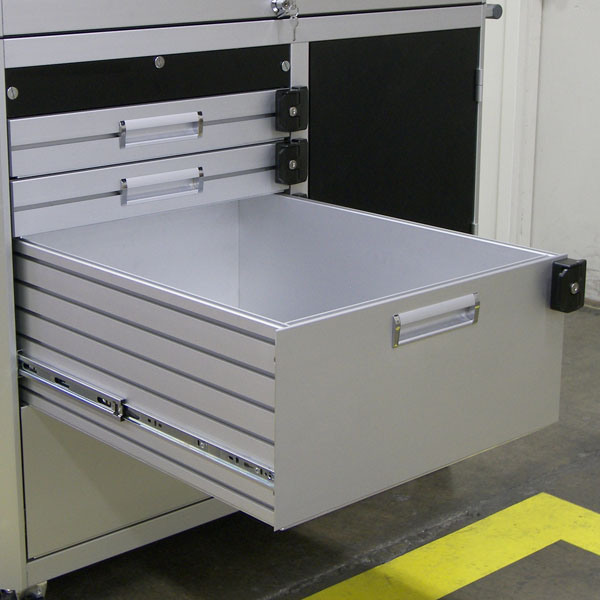

Drawer 270mm Deep

Part. N° SP070212-2

CAD DOWNLOAD ►  3D STEP | | Inventor 2009

APPLICATIONS
- Rugged, customizable drawer for workstations, carts & benches
- Up to 8' wide for maps or other large documents
TECHN. DATA / ITEMS SUPPLIED
- Specify width of opening
- 20" drawer slides, 95 lb capacity
(Other lengths available)
- Bottom panel 1/16" anodized aluminum or specify
- E-mail your specifications for a quote today
- Click here for drawings with machining prints
- Weight 16" Wide - 12.5 kg (27.5 lbs)
ASSEMBLY
- Drawer ships fully assembled
- Mount to t-slotted profiles on left & right that are the distance "width" apart (see left picture)
- Drawer slide 20 comes with mounting hardware for 45 series profiles
