Ergonomic Workstation With Rotating Top

Part. N° SP082916

CAD DOWNLOAD ►  3D STEP | PDF | Inventor 2012

- Assembly workstation. Rotate work surface up toward the operator to reduce back strain.
- Drafting tables
-Ergonomic table for assembly or building of electrical panels.

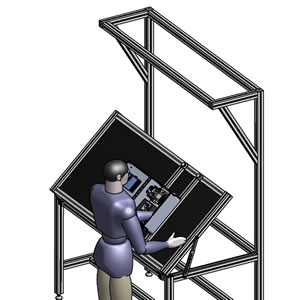

-Save back & eye strain by rotating table top up towards the assembler.

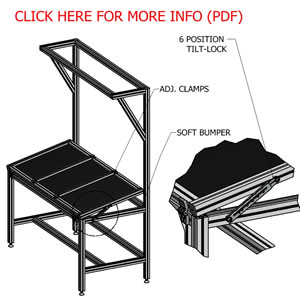

- Adjust the angle of the table top to one of six locations to find the most comfortable, ergonomic angle for your assembly.
- Use riser behind table top for shelving, parts bins, spool for electrical wires, etc.
- Don't need the mounting clamps. Click here to see a rotating table with retaining lip.
- Gas spring can be added as a lift assist. Note table must still put weight down on cam stay throughout the range of motion.

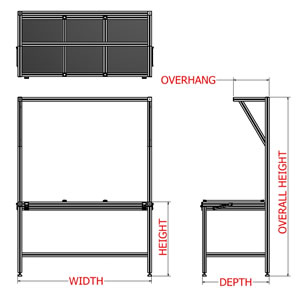

- Specify Height, Width & Depth, Overall Height & Overhang
- Table Made From 1/4" black HDPE plastic.  Click here for other table tops options.
- Two adjustable clamping bars for mounting electrical panels or other items to workstation top for assembly.
- Other casters & leveling feet available.  Click here for options
Note: Use plate casters for loads over 500 pounds
- Tables can be made using any of our t-slotted aluminum profiles.  Click here for options
- E-mail your specifications for a quote today
- Load Max.
500 lbs
- Can ship as a kit or fully assembled
- Click here to see how any size electrical box can be mounted to the clamping system.
