Rotary Latch 30

Part. N° 21.0949

CAD DOWNLOAD ►  3D STEP | Solidworks 2013 | Inventor 2012

APPLICATIONS
- Locking 1/4 turn latch for swinging doors made from 30 series profiles

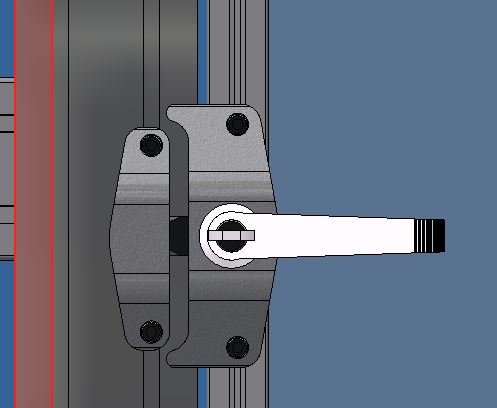

-Can be used with a 30 series door on a 45 series frame. Footprint is 7.5mm wider than in right picture. Click here for picture.
- This handle also acts as a door stop
-Handle is simply bolted to the t-slots & is adjustable up & down.

TECHN. DATA / ITEMS SUPPLIED
- Cast aluminum housing, powder coated gray
- Handle includes cam & M6 screws & nuts for mounting
- Weight - kg
ASSEMBLY
- No processing required.  Simply mount to door & frame with supplied hardware.
- Leave approximately a 5mm (.2") gap between door & frame.
