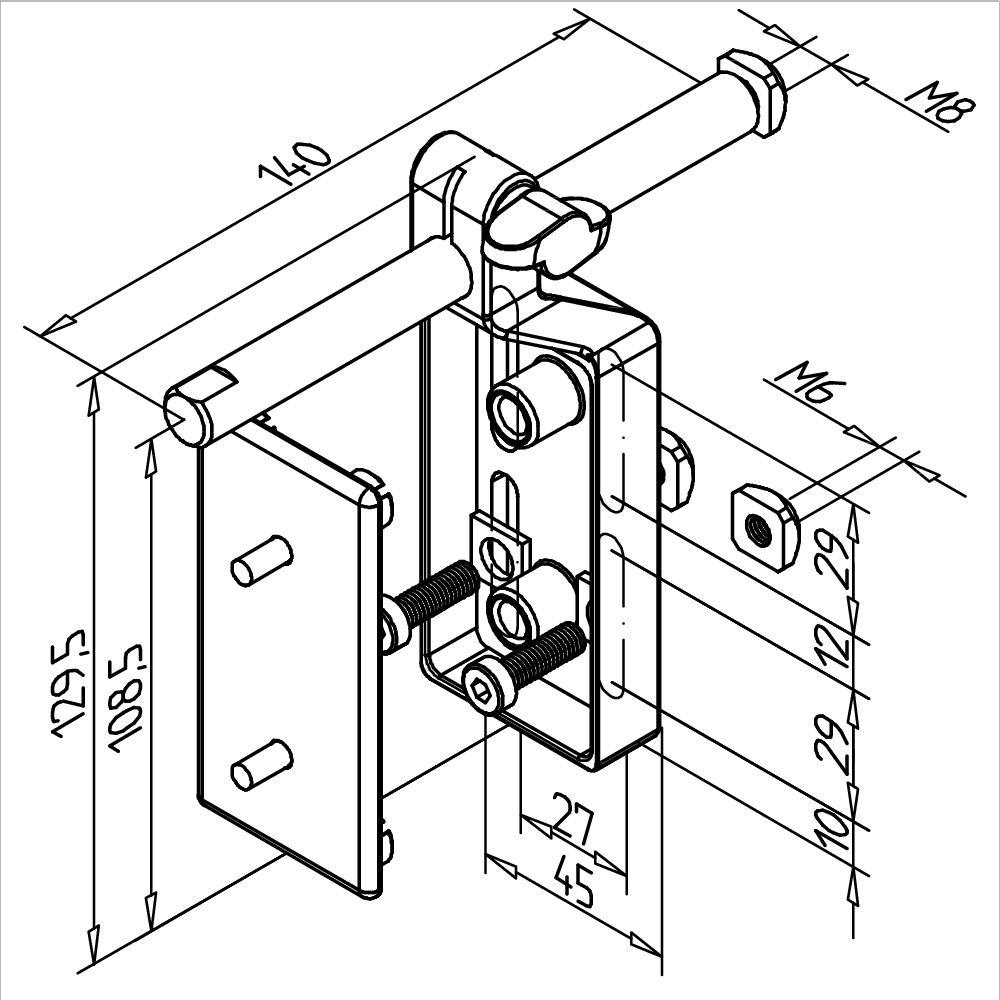

Lateral Guide Support 140
Part. N° 29.5028
TECHN. DATA / ITEMS SUPPLIED |
- PA 6 GF plastic body, gray |
- Stainless Ø12mm support shaft, 140mm long |
- Qty 1, M8x20 socket head cap screw |
- Qty 1, M8 round washer, Ø20mm |
- Qty 2, M8 square nuts |
- Qty 1, Anti twist device, aluminum |
- Qty 1, 45x90 gray end cap |
- Qty 1, Shaft locking wing knob |
- Weight |
- .142 kg |
ASSEMBLY |
- Fasten plastic body to conveyor profile using supplied M8 screw & nut |
- Adjust height as required |
- Slide Lateral Guide t-slot onto square nuts at end of 12mm shaft |
- turn rod to tighten nut, then tighten wing knob to fix shaft |
