Motor Kit 90
Part. N° 29.5060

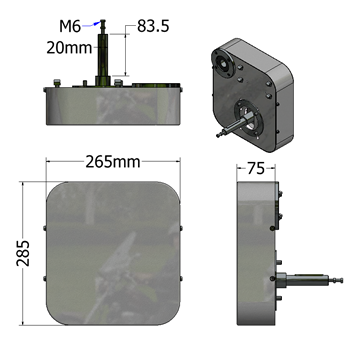

CAD DOWNLOAD ► 3D STEP | | Inventor 2020
| APPLICATIONS |
|---|
| - Mount motor under MiniTec's Conveyor series 90 |
| - For use with hollow bore motors |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Complete drive train to mount motor under 90 series conveyor | |
| - Includes 20mm self aligning bearing to support 29.5069 drive roller | |
| - 20mm output shaft with 6mm key to mount motor | |

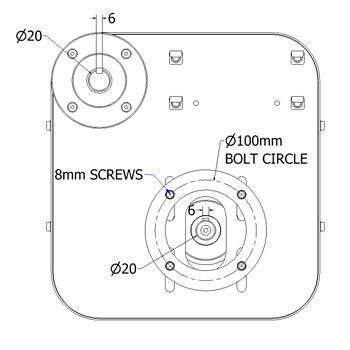

| - Flange to go around motor pilot with 100mm bolt circle. Flange diameter 120mm | |
| - Comes with 6x6x36 key used on drive pulley as well as 6mm key for use with motor. | |
| - Comes with 2 M6 screws to secure drive shaft to motor but does not include a washer to go over 20mm motor bore. | |
| - Weight | - 5.973 kg |
| ASSEMBLY |
|---|
| - Slide over 20mm conveyor roller shaft & bolt to 90mm profile using supplied M8 hardware. |
| - Can be assembled to mount to left or right sides of conveyor. |
