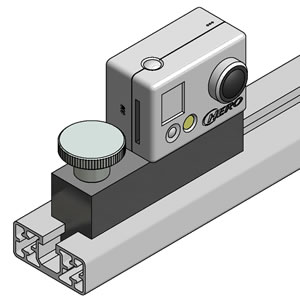

Slide Bar 23
Part. N° 22.1089
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
APPLICATIONS |
---|
- Low friction bearing surface and wear strips |
- Guiding of sliding doors & drawers |
- Easy to install lip or tabs |
TECHN. DATA / ITEMS SUPPLIED | |
---|---|
- UHMW hard plastic, black | |
- Extremely low friction & wear resistant | |
- Order cut precisely to size +/- .010" | |
- For cut charge use Part # 25.1093 | |
- Full Length | - 2m |
- Weight | - .673 kg/m |
Click here for full size animation
ASSEMBLY |
---|
- Slide into profile groove |
- Can be drilled & tapped for set screw to fix in position |
- Alternatively c'bore for screw & mill clearance for square nut to lock in position |
