Slide Bar R

Part. N° 22.1104

CAD DOWNLOAD ►  3D STEP | Solidworks 2008 | Inventor 2009

APPLICATIONS

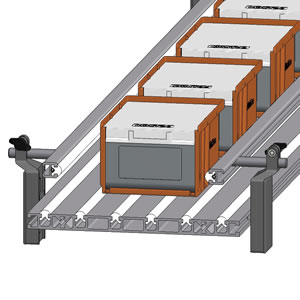

- Side guides for conveyors
- Kan-Ban racks
- Wear strips for sliding parts
TECHN. DATA / ITEMS SUPPLIED
- PE, white
- Extremely wear resistant
- Order cut precisely to size +/- .010"
- For cut charge use Part # 25.1093
- Full Length - 2m
- Weight - .115 kg/m
ASSEMBLY
- Slide into profile t-slot from the end
- Suitable for all profiles
- Part will slide back & forth in t-slot. It is usually designed to be trapped in a slot to prevent lateral motion.
- For fixing into conveyor side guide use M6x25 Set Screw, Part # 21.1335
