MiniTec Rod Locks

Rod locks can be used with 32mm thick doors or 45mm thick doors. They can be ordered with one rod or with two rods. Handles are also available as locking or non locking.

1


Click here for full size animation

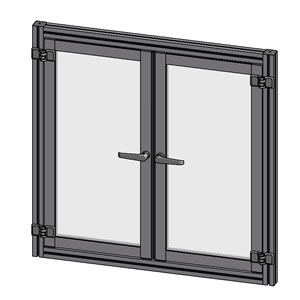

SP031915 Rod Lock Handle 32 Double Door Design Example





2



MiniTec Power-Lock Fastener
21.1798/4 Rod Lock With
Handle 32 & Two Rods



Power-Lock Fastener N
21.1788/4 Rod Lock With
Handle 45 & Two Rods





Right Angle T-slotted Fastener
21.1798/6 Rod Lock With
Locking Handle 32
& Two Rods



Strongest T-Slotted Fastener
21.1788/6 Rod Lock With
Locking Handle 45
& Two Rods

3

Economical Profile Fastener
21.1798/2 Rod Lock With
Bolt Lock 32 & Two Rods



No T-Slot Nut Required
21.1788/2 Rod Lock With
Bolt Lock 45 & Two Rods

Vibration Resistand Profile Fastener
21.1798/3 Rod Lock With
Handle 32 & One Rod

Profile Anchor Fastener
21.1788/3 Rod Lock With
Handle 45 & One Rod

4

Aluminum Profile Anchor Fastener
21.1798/5 Rod Lock With
Locking Handle 32
& One Rod



Aluminum Extrusion Butt Joint Fastener
21.1788/5 Rod Lock With
Locking Handle 45
& One Rod

Inline T-Slot Fastener
21.1798 Rod Lock With
Bolt Lock 32 & One Rod

In The T-Slot Fastener
21.1788 Rod Lock With
Bolt Lock 45 & One Rod
