Hinges & Links

1


Click Here For Full Size Animation
Of 270 Degree Hinge





Aluminum Profile Anchor Fastener
21.1098 Hinge 45 S
(270 Degree Hinge)



Vibration Resistand Profile Fastener
21.1044 Hinge 19 S
(270 Degree Hinge)



Profile Anchor Fastener
21.1055 Hinge 32 S
(270 Degree Hinge)



2

Strongest T-Slotted Fastener
21.1373 Hinge L 19/19
(Lift off hinge)





Economical Profile Fastener
21.1375 Hinge L 19/45
(Lift off Hinge)

No T-Slot Nut Required
21.1378 Hinge L 45/45
(Lift off hinge)


Click Here For Full Size
Animation Of The Lift Off Hinge

3

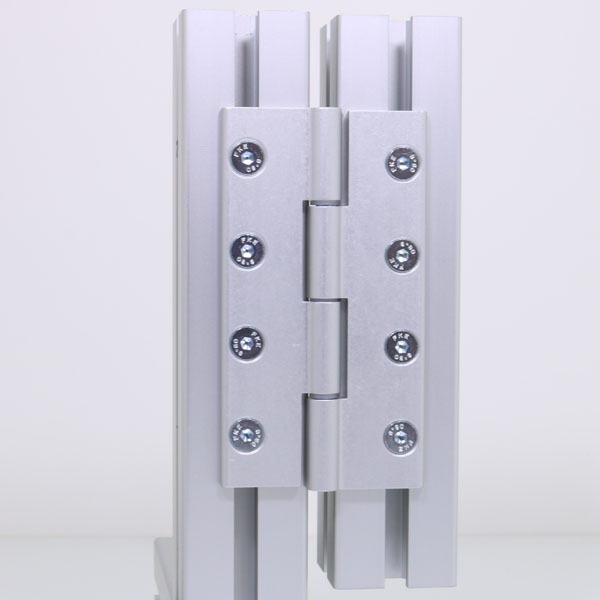

21.0970 Door Hinge Large

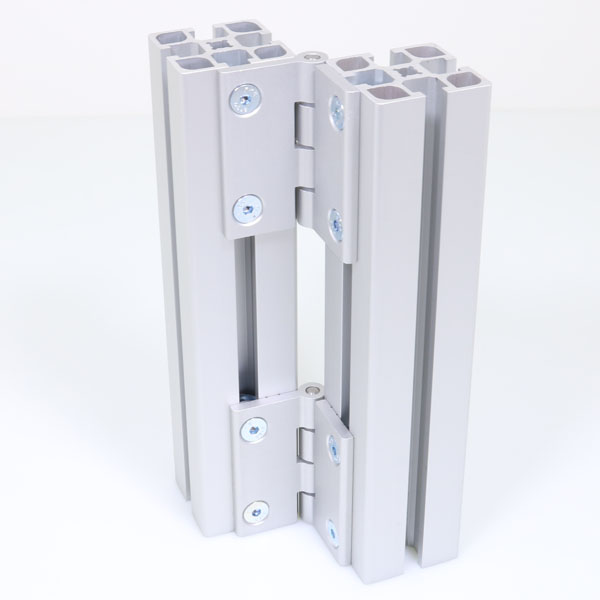

21.0973 Door Hinge Small

In The T-Slot Fastener

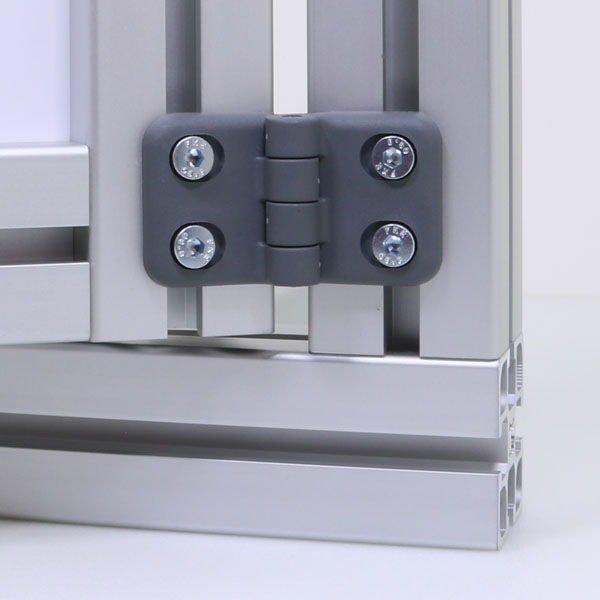

21.1175 Hinge 45 M6

T-Slotted Profile Butt Joint Fastener
21.1142 Internal Hinge AL

4

Full Length 3.7 Meters

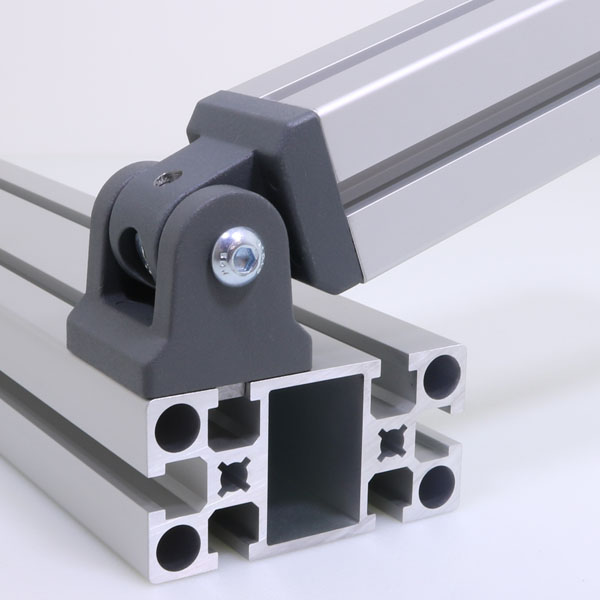

21.2030 Link

Not for use as a hinge





Order In Custom Lengths

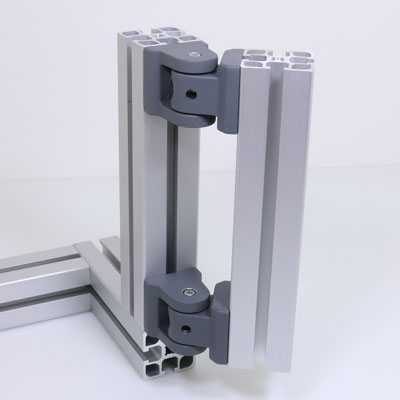

21.2020 Angle Bracket Swivel

For use as hinge


Order In Custom Lengths

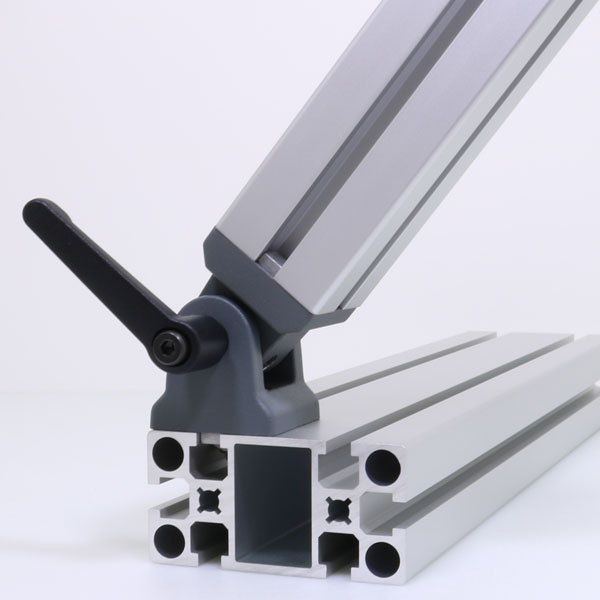

21.2010 Angle Bracket Fixable

Lockable Hinge Suitable For Horizontal Or Light Vertical Applications

45 Degree Extrusion Joint

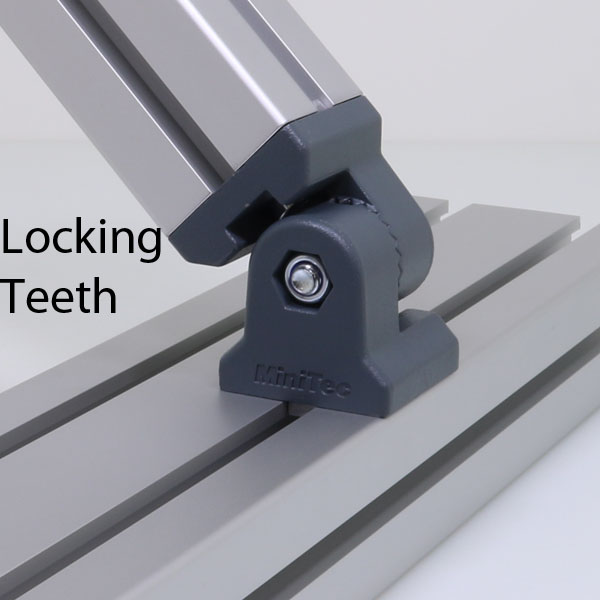

21.2041 Angle Bracket R

Not for use as a hinge.
Has teeth to handle higher moment loads

5

T-Slotted Aluminum Miter Joint
21.2230 Angle Bracket R Fixable

Not for use as a hinge
Has teeth to handle higher moment loads

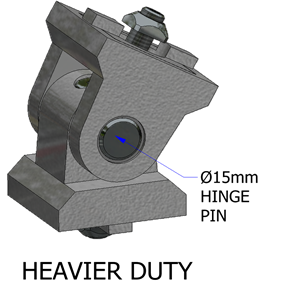

21.2315 Swivel Joint 45/15

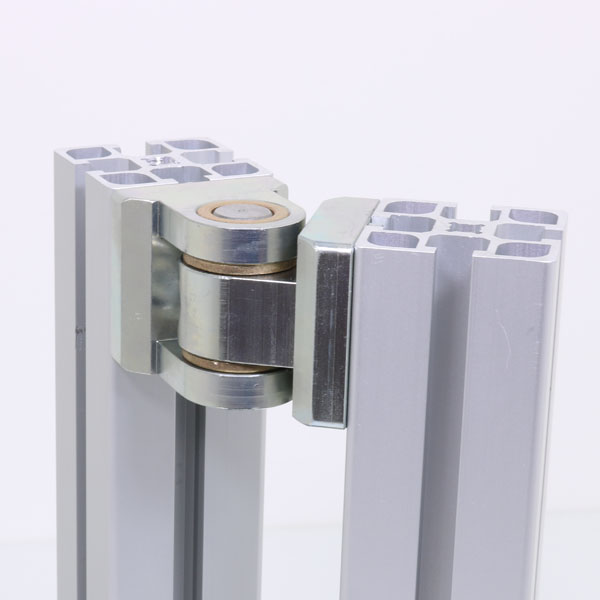

21.2034 Heavy Duty Hinge

Inline T-Slot Profile Fastener
21.1187 Swing Out Hinge





6

MiniTec Power-Lock Fastener
21.1100 Hinge 19

Power-Lock Fastener N
21.1095 Hinge 32

Right Angle T-slotted Fastener
21.1096 Hinge 45

Aluminum Extrusion Butt Joint Fastener
21.1131 Hinge 32 GD (Black)



7

Inline T-Slot Fastener
21.1130 Hinge 45 GD (Black)
