Turning Device 90x90

Part. N°32.2010

CAD DOWNLOAD ►  3D STEP | | Inventor 2012

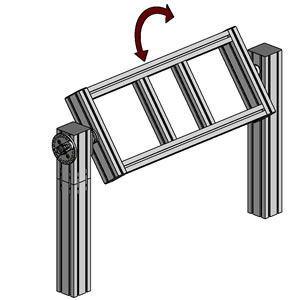

APPLICATIONS
- Repeatable Rotary positioning
- Particularly useful when you want to return to the same position every time.
-Control the angle of you part to make assembly of electrical & control boxes more ergonomic.
TECHN. DATA / ITEMS SUPPLIED

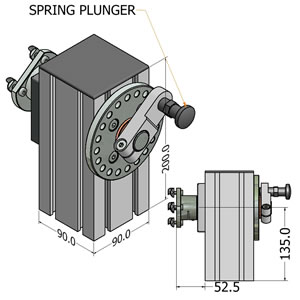

- Qty 1, Steel spring plunger with plastic knob, Swing Arm & steel indexing plate
Qty 2 25mm Bronze Bushings & 25mm shaft with output flange coupling
- Ship assembled with everything shown in left picture above
-Hardware to mount included 90x90 profile to other profiles sold separately.
- Rotate on 18° Increments. Handle has built in adjustment to control starting position.
- Weight - 4.37 kg
- Load Max. - 1500N (337 lbs)
- Max Moment Load - 150 Nm
ASSEMBLY
- Unit ships fully assembled

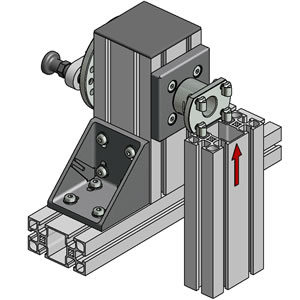

- Often mounted to other profiles using t-slot bars, angles or Power-Locks.
