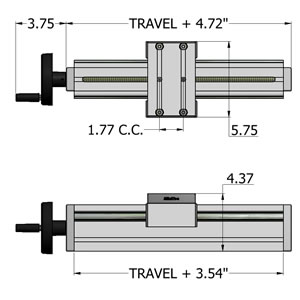

Adjusting Unit VEW 45 X 90 H

Part. N° 28.0182

CAD DOWNLOAD ►  3D STEP | | Inventor 2012

APPLICATIONS
- Unit will not back drive even when vertical under full load
- General screw driven linear positioning
- Over conveyor positioning of reader & print heads
- Positioning of sensors
TECHN. DATA / ITEMS SUPPLIED

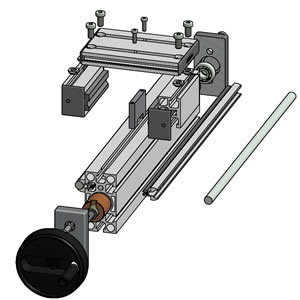

- Fully assembled lead screw driven linear positioner

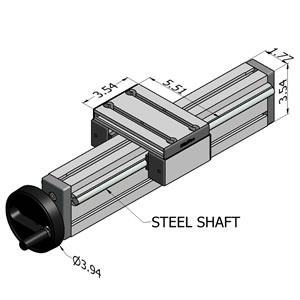

- UHMW bearings Slide Rail LG ride on hardened steel bearing shaft 12
- Standard travel 305mm
  other travel lengths available on request
- Acme 16x4 screw & bronze nut
- Plastic hand crank with fold away handle
- Max Load - 450 N (101 lbf)
- Max Travel - 72.25"
- Basic Weight (no travel) - 2.109 kg
- Weight/100mm stroke - .74 kg
ASSEMBLY
- Linear positioner ships fully assembled
