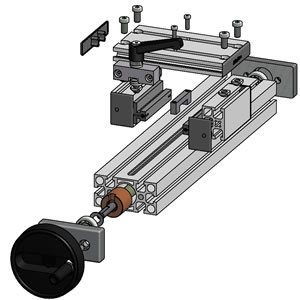

Adjusting Unit VEN 45x90 F With Top Lock

Part. N° 28.0188/1

CAD DOWNLOAD ►  3D STEP | | Inventor 2012

APPLICATIONS
-Unit will not back drive, even when vertical & under full load
- General screw driven linear positioning
- Over conveyor positioning of reader & print heads
- Positioning of sensors
TECHN. DATA / ITEMS SUPPLIED
- Fully assembled lead screw driven linear positioner
- Standard travel 12" (305mm)
  other travel lengths available on request
- Acme 16x4 screw & bronze nut
- Two UHMW Polyethylene Plastic Bearings
- Plastic hand crank with fold away handle
- 28.0270/9 Slide Clamp Unit
- Max Load - 450 N (101 lbf)
- Max Travel - 71.5"
- Basic Weight - 2.35 kg (5.2 lbs)
- Weight/100mm(3.94") stroke - .49 kg  (1.08 lbs)
ASSEMBLY
- Linear positioner ships fully assembled
