End Cap 90x90 Gray
Part. N° 22.0983/1
CAD DOWNLOAD ► 3D STEP | | Inventor 2018
| APPLICATIONS |
|---|
| - End cover for Profile 90x90 L, Part # 20.1010 |
| - End cover for Profile 90x90 S, Part # 20.1019 |
| - End cover for Profile 90x90 G, Part # 20.1082 |
| - End cover for Profile 90x90 2G, Part # 20.1044 |
| - End cover for Profile 90x180 S, Part # 20.1013 (2 Req.) |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - ABS plastic, gray, non-aging, oil resistant | |

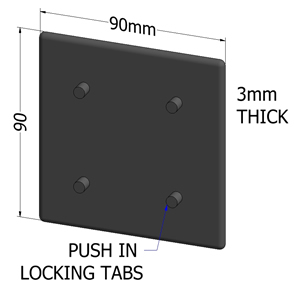

| - Thickness 3mm | |
| - Available in black, Part # 22.0983 | |
| - Weight | - .026 kg |
| ASSEMBLY |
|---|
| - No processing required |

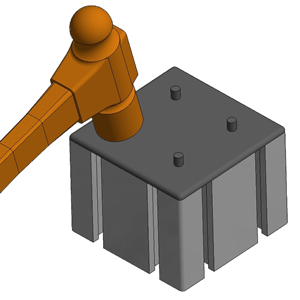

| - Simply press in by hand then tap with small hammer or plastic mallet |
