Panels & Table Tops

1


21.1830 6mm(1/4") Clear Polycarbonate
Often know as Lexan™




21.9559 3mm(1/8") Clear Polycarbonate

Lexan MR10
21.1830/3 Lexan MR10 Abrasion Resistant Polycarbonate


21.9560 3/8" Clear Polycarbonate



2


21.9561 (12.7mm) 1/2" Clear Polycarbonate



Machine guard mesh panel
21.9510 Black Weldmesh 1"x1"

Machine guard mesh panel
21.9513 Black Weldmesh 1/2"x1/2"

safety yellow machine guard walls
21.9511 Yellow Weldmesh 1"x1"

3

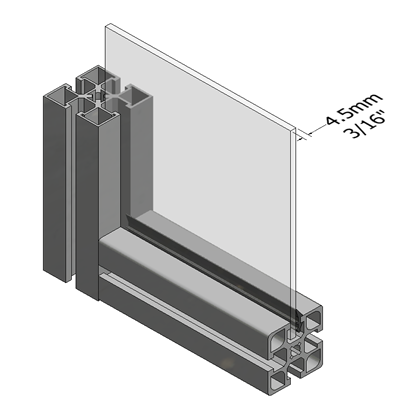

Click Here For A Larger Image Showing How To Frame Panels In The Profile T-Slots




21.9570 1/4" Clear Tempered Safety Glass

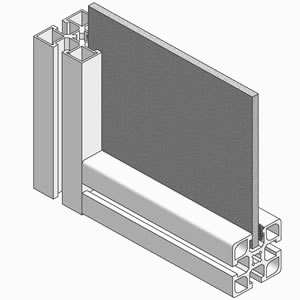

21.9549 1/4" Gray HDPE With Haircell Finish

Black ABS
21.9551  1/4" Black HDPE With Haircell Finish

4


21.9550 1/4" White HDPE With Haircell Finish



White 3mm aluminum composite panel

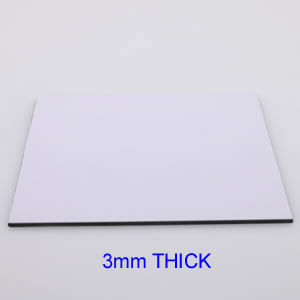

21.9500/3 White 3mm Aluminum Composite Panel

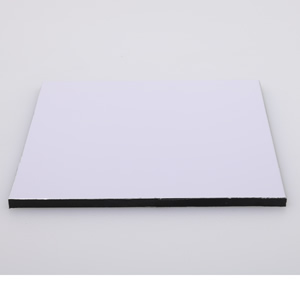

White Aluminum Composite Panel 6mm
21.9500/6 White 6mm Aluminum Composite Panel

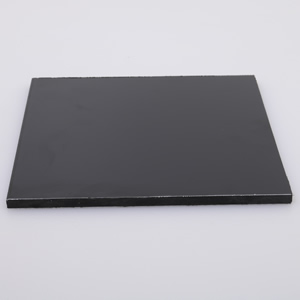

Aluminum Composite Panel Black 6mm
21.9501/6 Black 6mm Aluminum Composite Panel

5

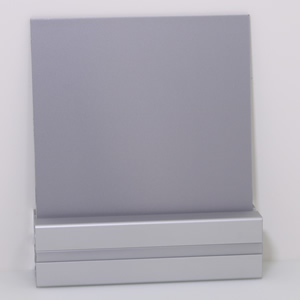

21.9502/3 Silver 3mm Aluminum Composite Panel

aluminum diamond plate
21.9555 1/4" White Sintra™


21.9552  1/4" Black Sintra




21.9558 1/4" Blue Sintra




6


21.9556 Dyed White Polypropylene


21.9564 Light Gray 3/4"HDPE Plastic (Haircell Finish)




21.9563 Black 3/4"HDPE Plastic (Haircell Finish)




21.9565 Natural White 3/4"HDPE Plastic (Haircell Finish)



7

60.9085 M8x15 Threaded Insert For Mounting Table Tops From The Underside


21.9553 1/2" Black UHMW


21.9557 1/2" White Polyethylene



1/16" aluminum sheet
21.9521  1/16" Aluminum Sheet Mill Finish



8


21.9521/1  1/16" Aluminum Sheet Anodized


21.9523 1/8" Aluminum Sheet Mill Finish


21.9523/1 1/8" Aluminum Sheet Anodized



1/4" ALUMINUM PANEL

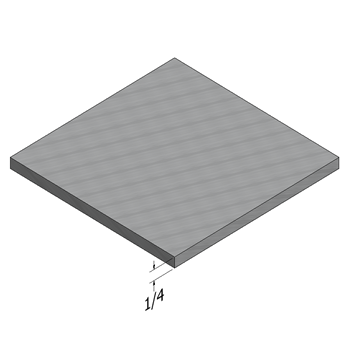

21.9525 1/4" Aluminum Sheet Mill Finish





aluminum diamond plate
21.9535 Aluminum Diamond Plate 1/8"

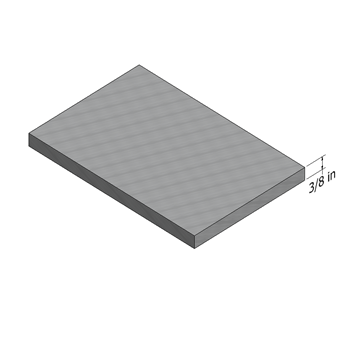

21.9527/5 3/8" Aluminum Plate
Mill Finish 6061

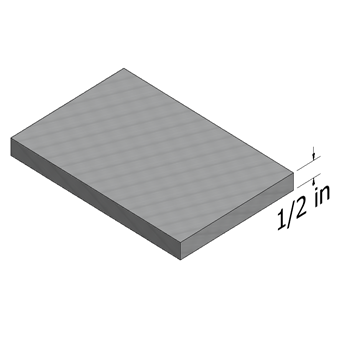

21.9528 1/2" Aluminum Plate
Mill Finish




21.9530/2 3/4" Cast Aluminum Jig Plate



9

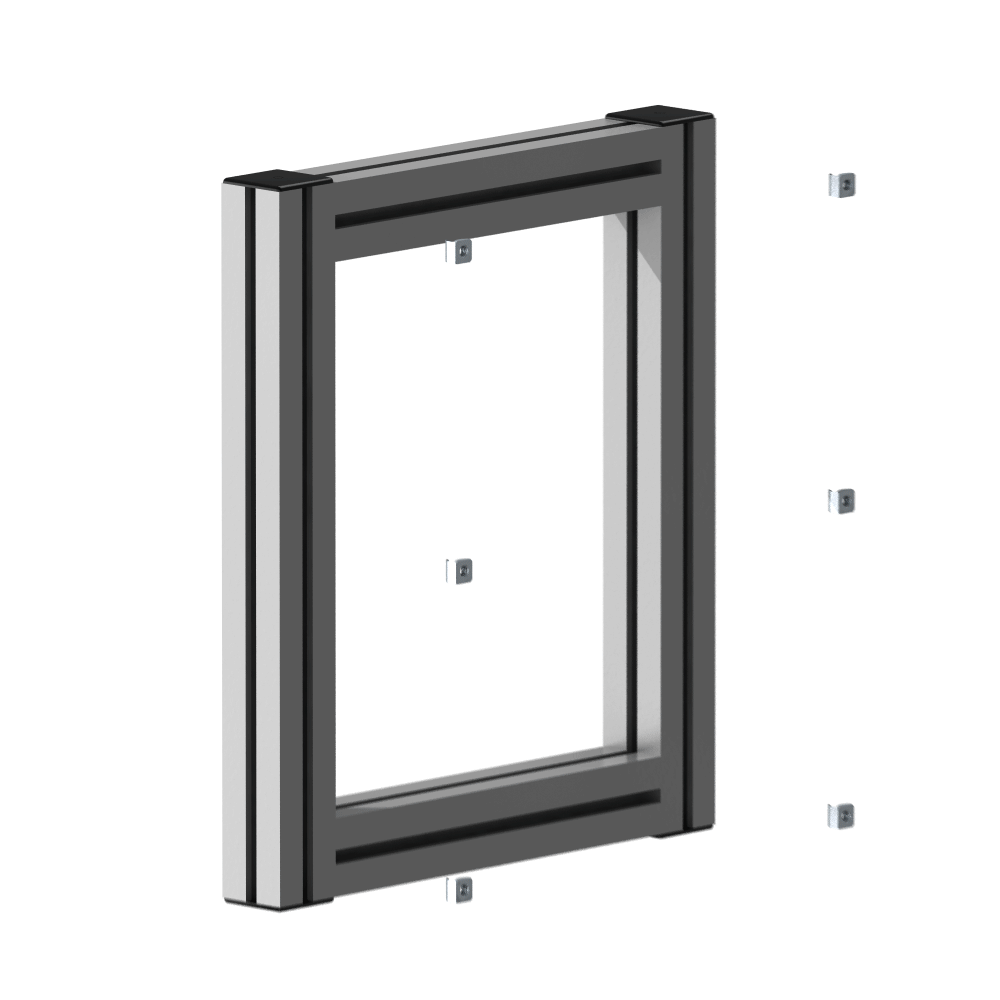

Click Here For Larger Image Of How To Bolt Panels To The T-Slots Of Our Aluminum Profiles

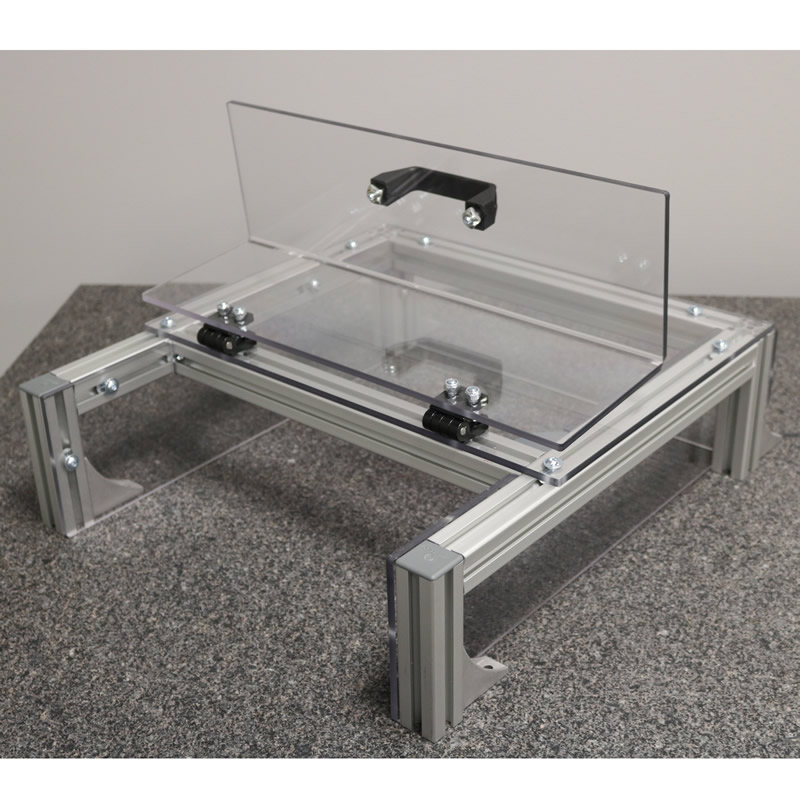

MiniTec can bend polycarbonate up to 1/4" thick 90 degrees




L Shaped angled door provides good visibility & allows access to front & top

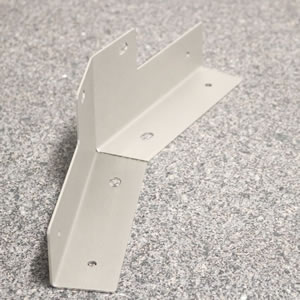

Custom sheet metal bracket for mounting 45x45 profiles at an angle
Custom sheet metal bracket fabricated to mount 45x45 profiles at an angle
