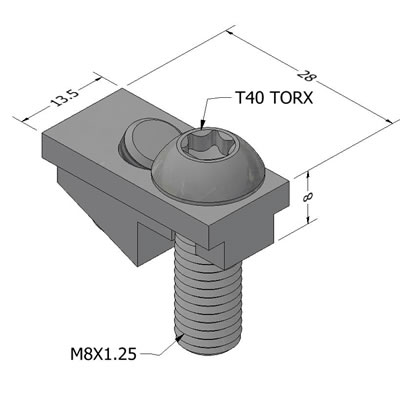

Power-Lock Fastener Stainless Steel
Part. N° 21.1018/1
| APPLICATIONS/FEATURES |
| - Adjustable. Loosen the 4mm set screw to reposition |
| - No drilled access hole required |
| - Angled set screw much easier to access than fasteners with screws deep in the t-slot |
| -Set screw deflects head of M8x25 screw, giving a lock washer effect & helping prevent vibration loosening |
| - Teeth in body grip the profile for greater strength against shear loads |
| TECHN. DATA / ITEMS SUPPLIED |
| - Power-Lock body, 17-4 ph stainless steel |
| - 1 M8x25 18-8 stainless button head hex socket screw (Not self tapping) |
| - 1 M8 x 16 18-8 stainless set screw |
| - Steel Power-Lock 21.1018 |
| - Weight |
- .029 kg |
| ASSEMBLY |
| - Thread profile centerhole with M8x1.25 form tap |
| - Screw into profile center hole with a 5mm hex key |
| - Slide Power-Lock into opposing t-slot |
| - Tighten angled set screw with 4mm hex key |
| - Recommended locking torque 12Nm |
