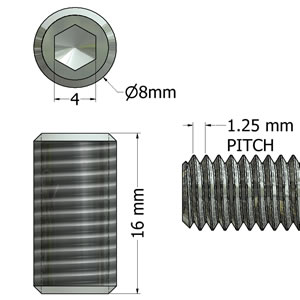

M8x16 Set Screw
Flat Point
Part. N° 21.1301
CAD DOWNLOAD ► 3D STEP | Solidworks 2013 | Inventor 2012
| APPLICATIONS | |
|---|---|
| - Replacement set screw for Power-Locks 21.1018 & 21.0818 | |
| - Closest inch screw | 5/16-18 |
| - Ø8mm = | .315 inches |
| - Length 16 mm = | .63 inches |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Steel, zinc plated | |
| - Din | 913 |
| - Diameter | 8 mm |
| - Length | 16 mm |
| - Thread pitch | 1.25 mm |
| - Hex drive | 4 mm |
| - End type | Flat Point |
| ASSEMBLY |
|---|
| - |
| - |
| - |
