M16 Conical Lock Washer
Part. N° 21.1991
APPLICATIONS |
- General lock washer for M16 Hardware |

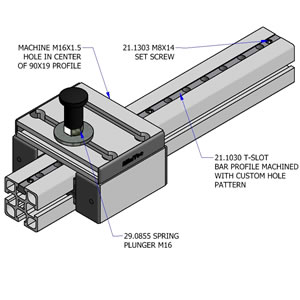

- Space 29.0855 Spring Plunger |
TECHN. DATA / ITEMS SUPPLIED |
- Galvanized Steel M16 Conical Lock Washer |
- Bellville Disk Spring Style |
- Metal Thickness |
4mm |
- Uncompressed Height |
5mm - 5.25mm |
- DIN |
6796 |
RoHS Compliant |
Yes |
ASSEMBLY |

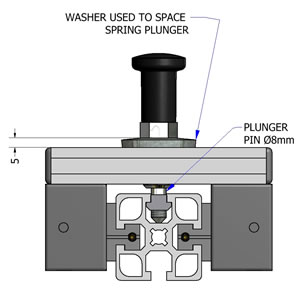

- Plunger doesn't compress this washer to flat. Assume 4.5-5mm thickness when used |
- Typically used with concave surface out. Can be used in reverse for spacing closer to 4mm |
- This washer does not have a load rating |
