MiniTec T-Slotted Aluminum Extrusions. Modular Aluminum Profiles For Custom Construction From Aluminum Extrusions. Custom Clean Rooms, Ergonomic Workstations, Belt Conveyors, and Machine Guards Are But A Few Applications.

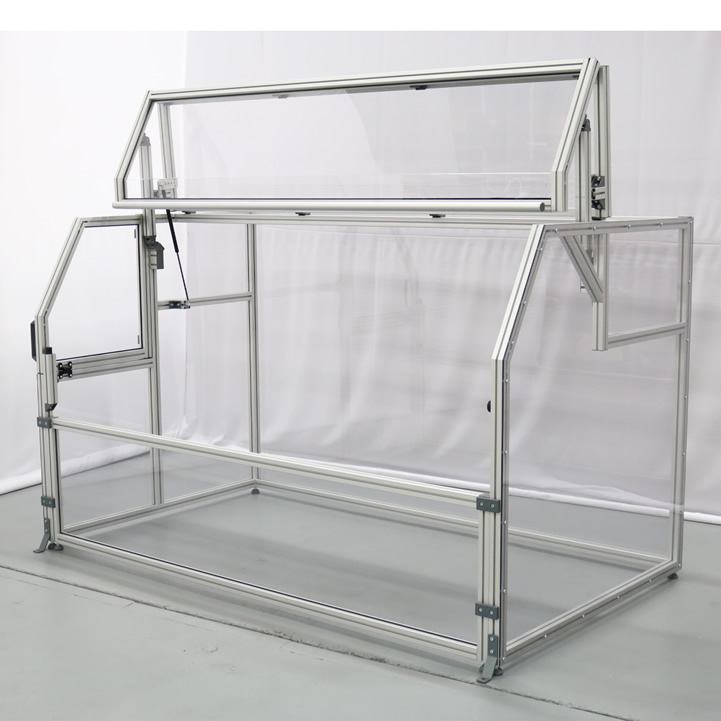

	Vertical Bi fold Door Opens Up & Retracts Back Giving Operator Unrestricted Access To The Inside Of The Enclosure. Often Used As A Lathe Enclosure
	Design AM102816-2 Click Here To Download Solid Model In Step Format

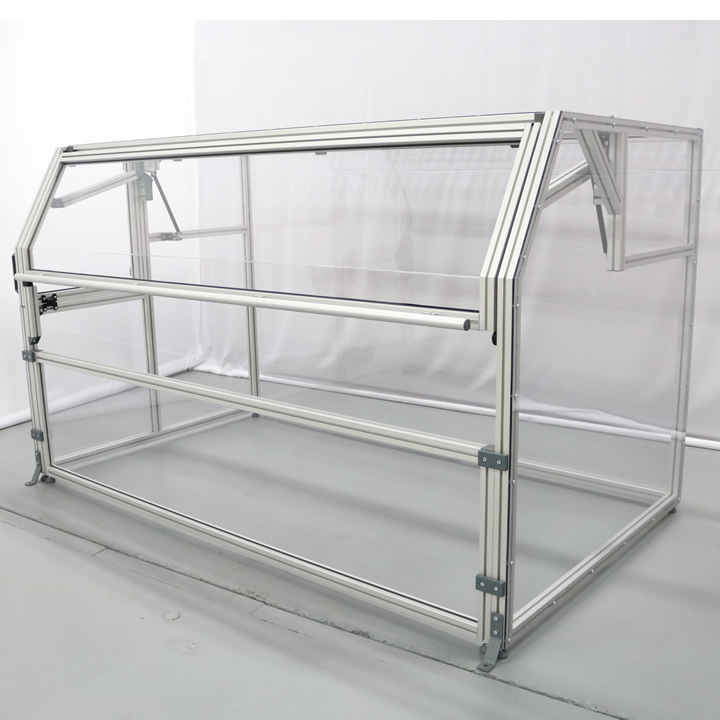

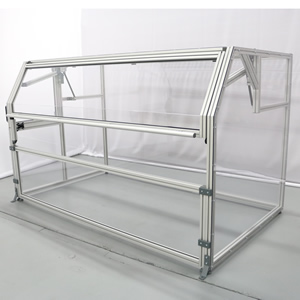

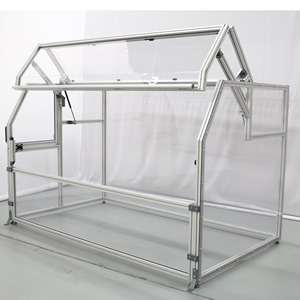

1	Fold open door shown in closed position	Double hinged door opens up & retracts back & out of the way	Allows operator to lean over & into the machine. A Fork lift can also be used to load the machine	Video shows the door open up & retract back.

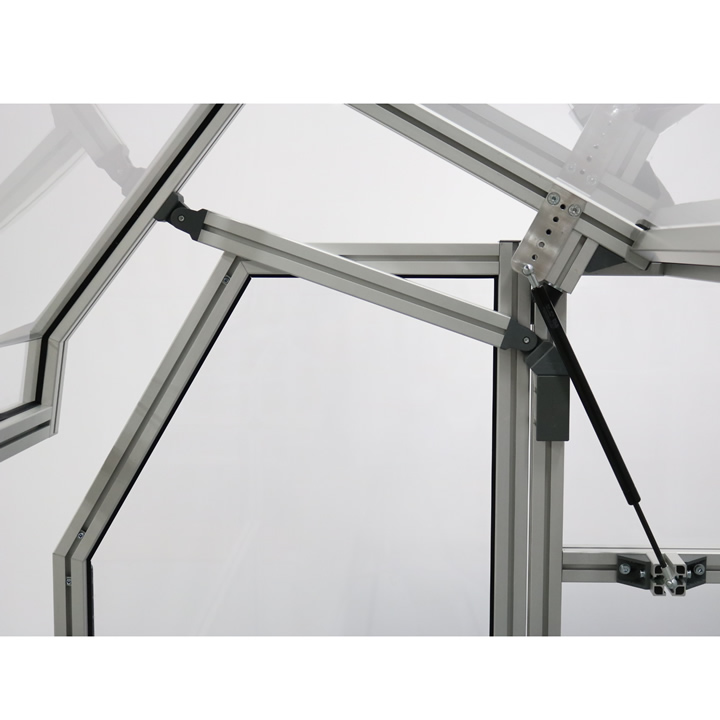

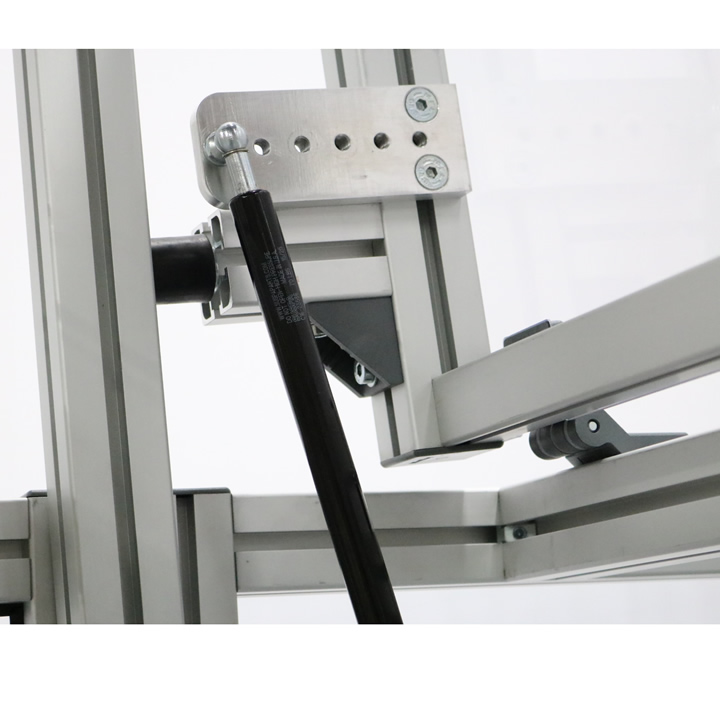

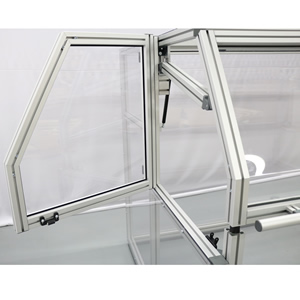

2	View of fold up door from inside the enclosure	Door opens until it hits the adjustable bumper	Lathe enclosure has side door allowing full access to from three sides to load large cylinders for turning

Vertical Bi fold Door Opens Up & Retracts Back Giving Operator Unrestricted Access To The Inside Of The Enclosure. Often Used As A Lathe Enclosure
