MiniTec T-Slotted Aluminum Extrusions. Modular Aluminum Profiles For Custom Construction From Aluminum Extrusions. Custom Clean Rooms, Ergonomic Workstations, Belt Conveyors, and Machine Guards Are But A Few Applications.

Machine Guard With Large Cantilevered Sliding Doors For Fork Lift Access. Sliding Doors Have No Upper Or Lower Rails
Click thumbnail for larger image

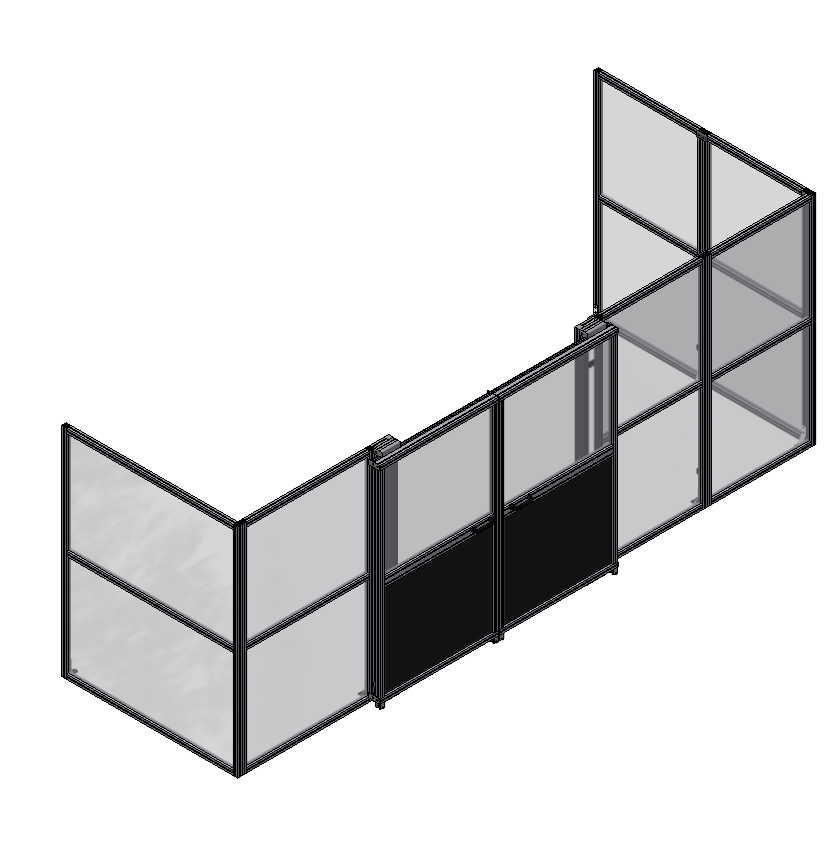

	Doors Shown Fully Open	Doors closed	Top view

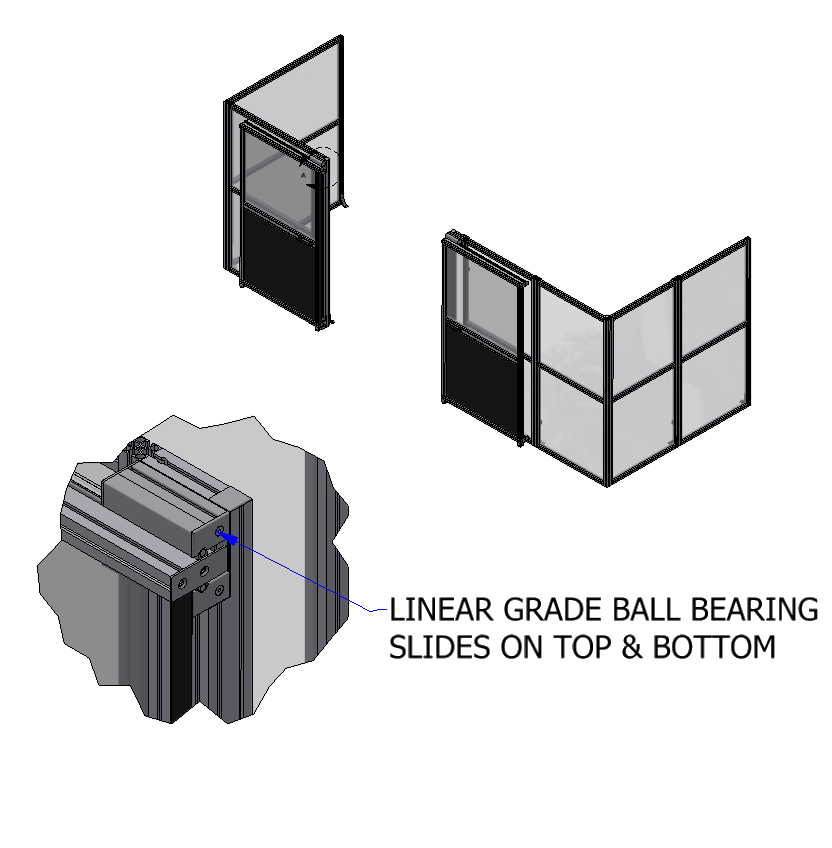

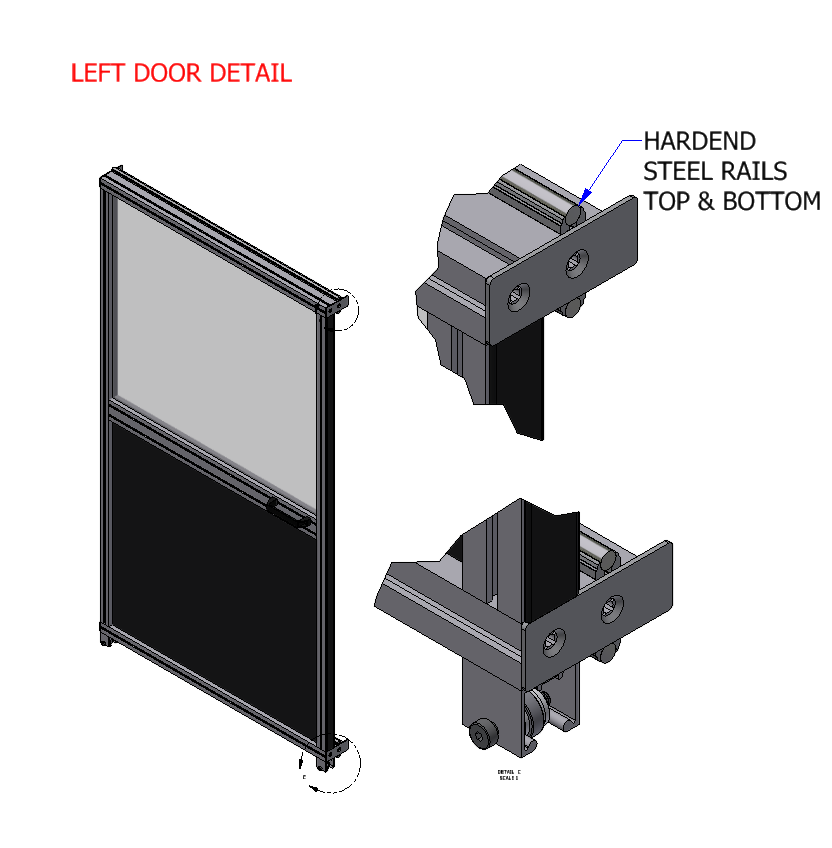

	Ball bearing slides	Door can be made to virtually any size & can be used with or without the surrounding enclosure. The doors slide on linear grade ball bearings for smooth operation & long life even is hostile environments. The sliding doors don't have rails on the top or bottom of the door opening leaving the entrance clear for forklifts. Project # MH052212-1 Click here for a solid model in step format e-mail sales@minitecframing.com for more information	Hardened 12mm Rail On Door At Top & Bottom

Machine Guard With Large Cantilevered Sliding Doors For Fork Lift Access. Sliding Doors Have No Upper Or Lower Rails
