Back Lit Inspection Table With Rotating Top & XY Linear System




1

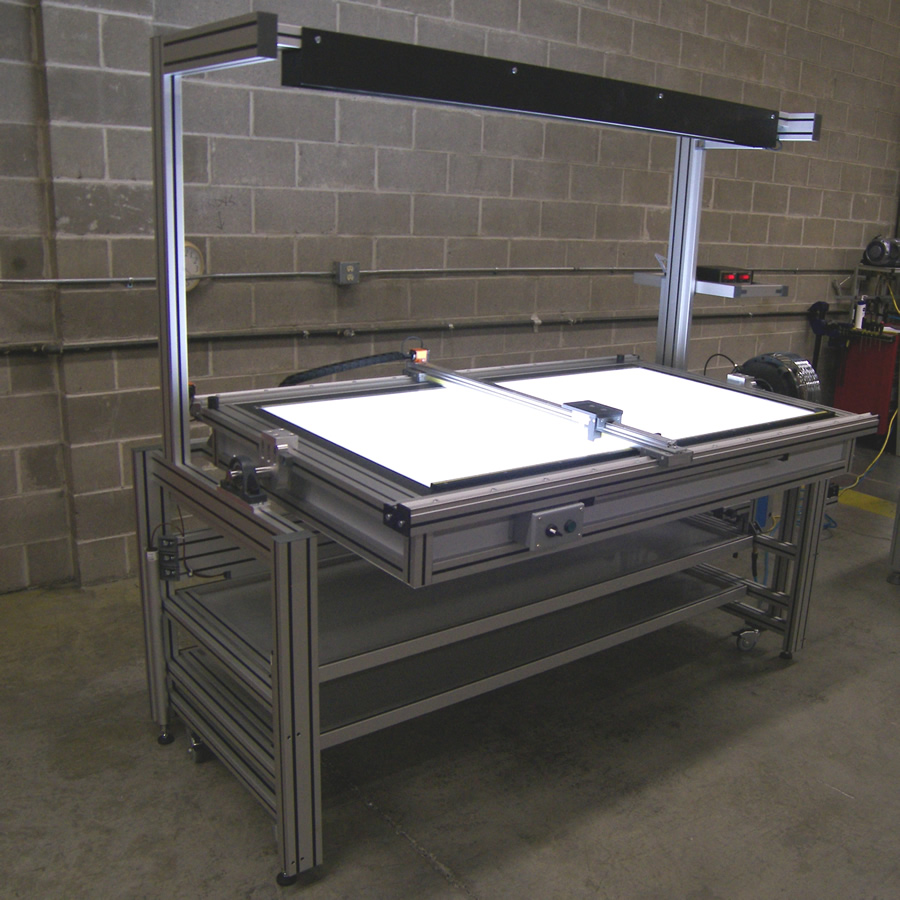

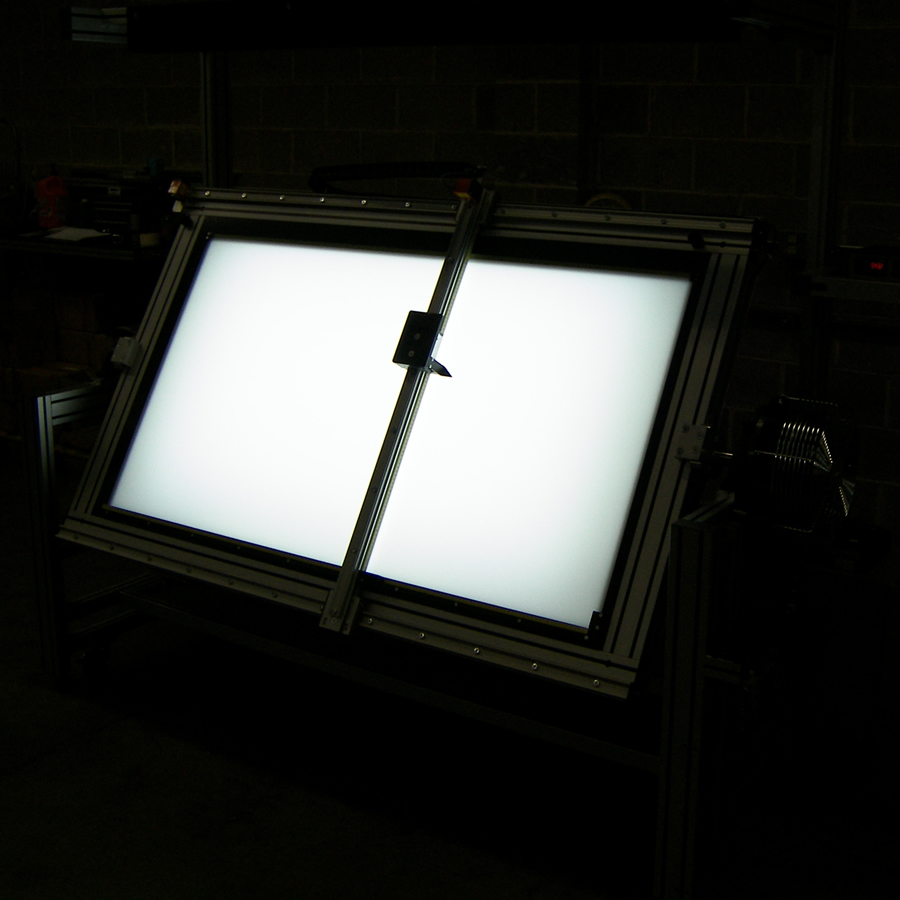

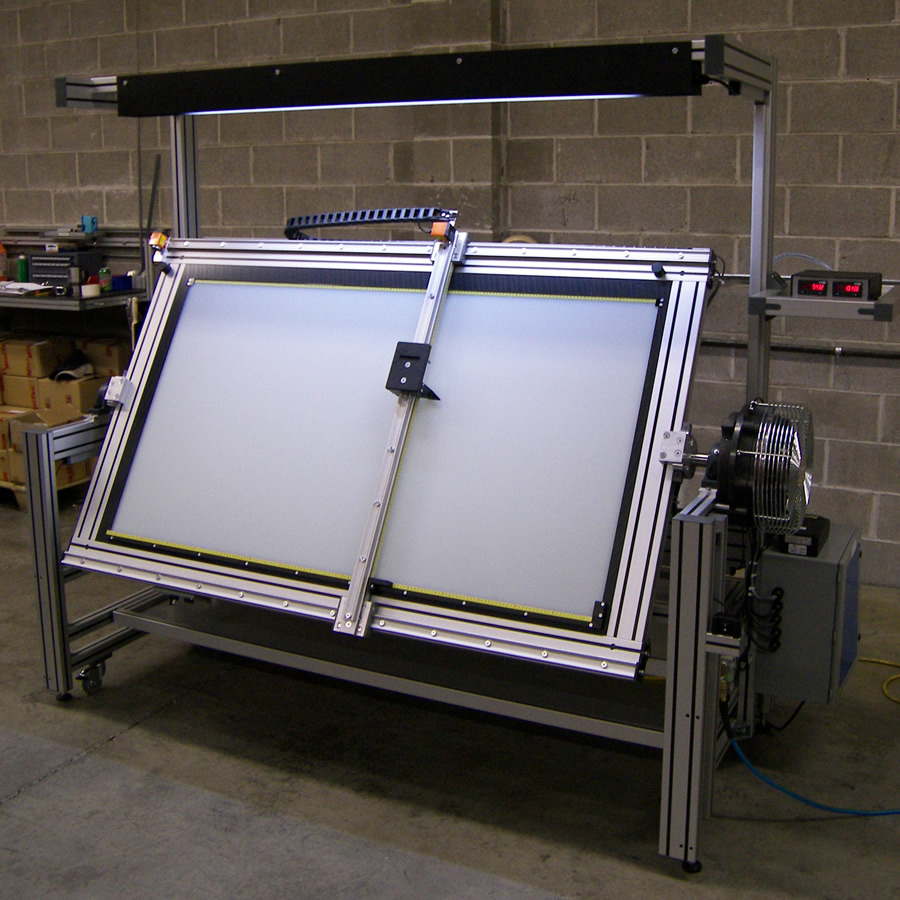

Back lit inspection table rotates to any angle the operator desires

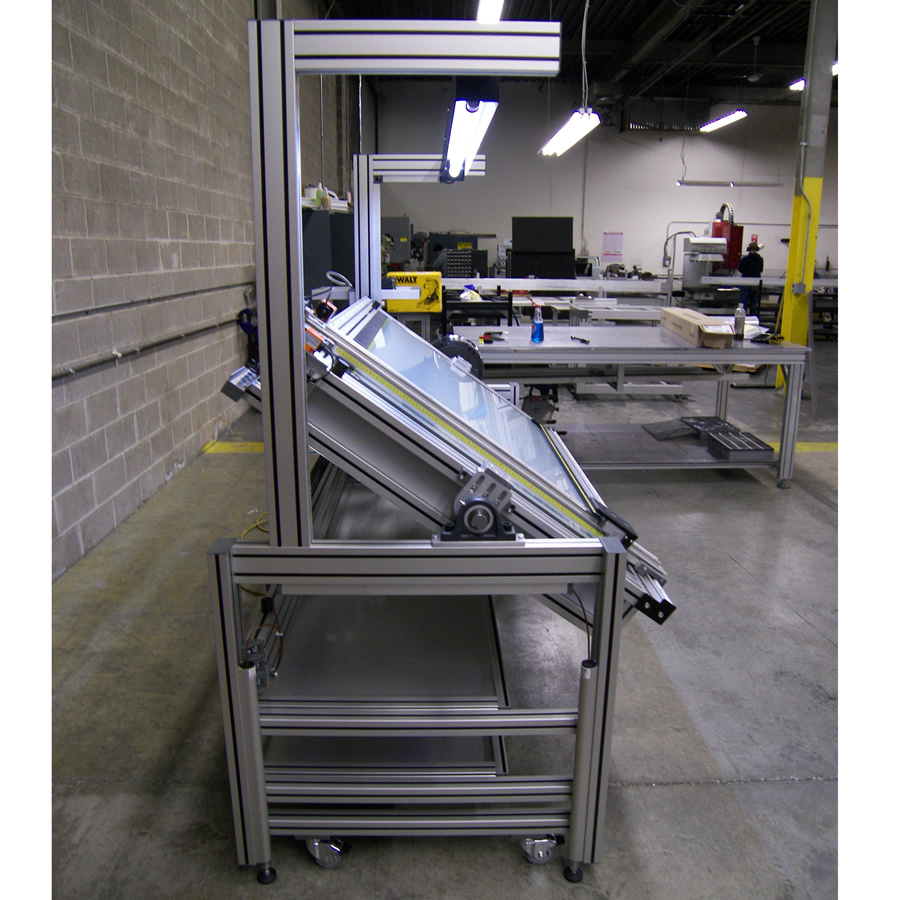

Inspection table is height adjustable




XY linear system locates exact coordinates of imperfections. This information is digitized & used to track down the location of the problem on the production web

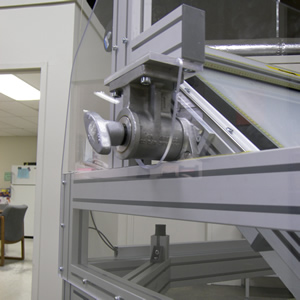

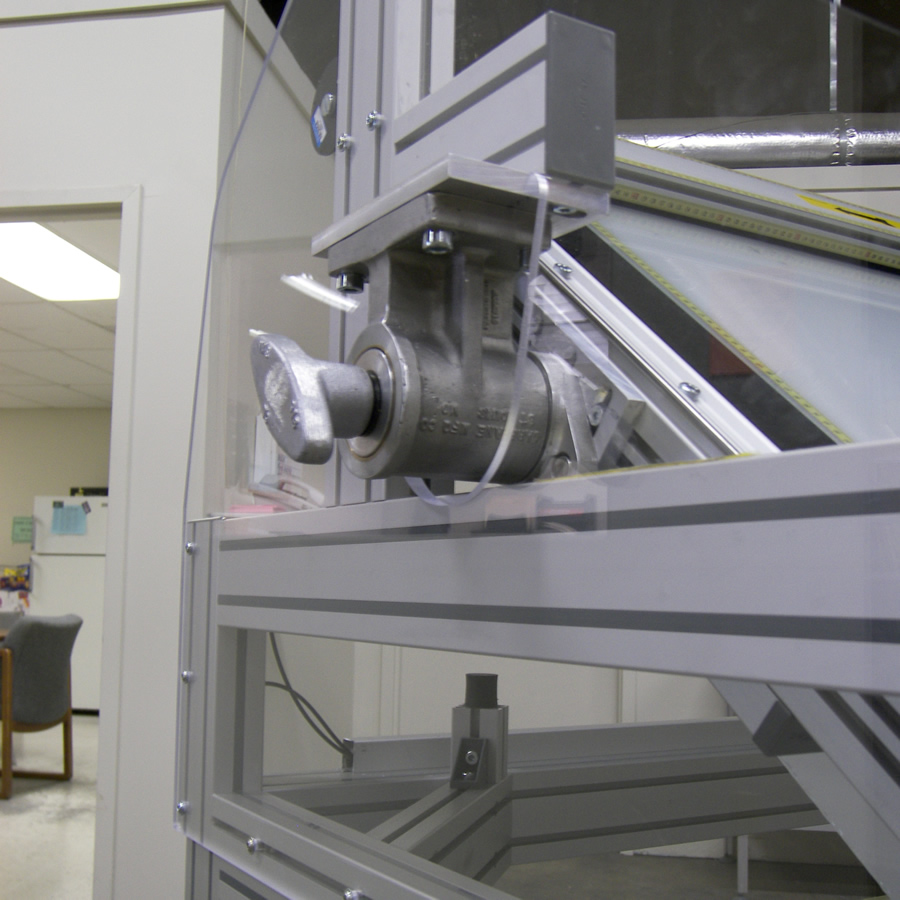

Hand locking trunion secures the table at any angle

2


Fluorescent lights can be dimmed

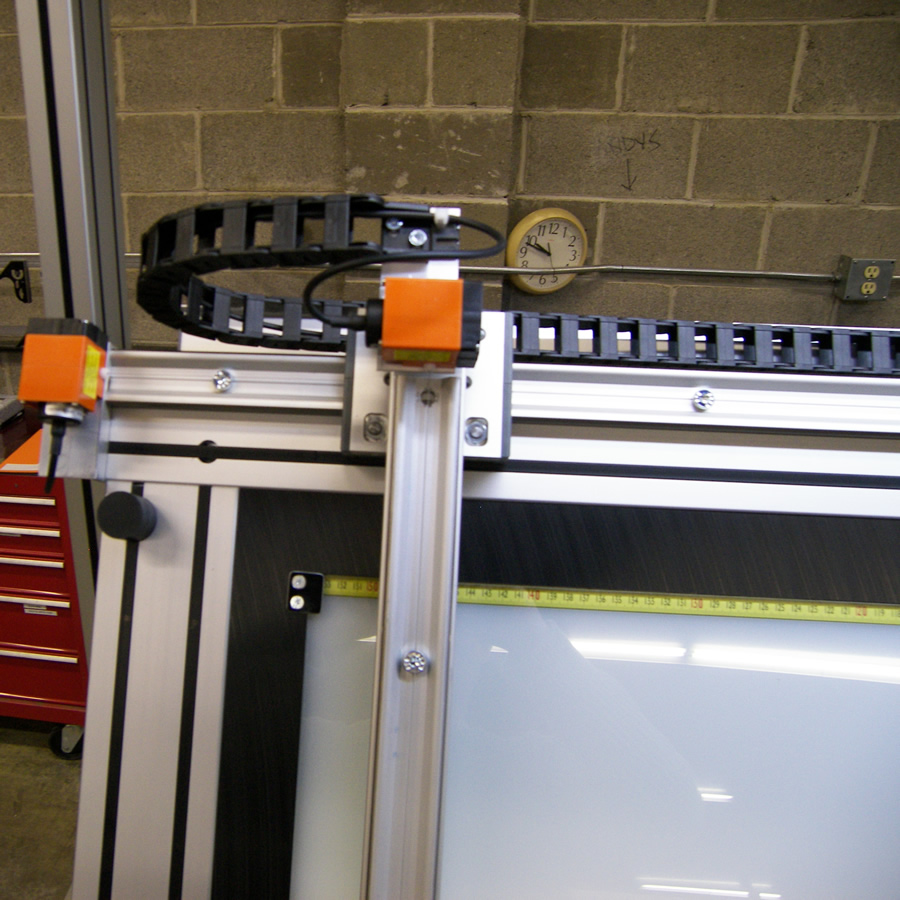

Digital linear encloders can record the XY location of the imperfection with the push of a button

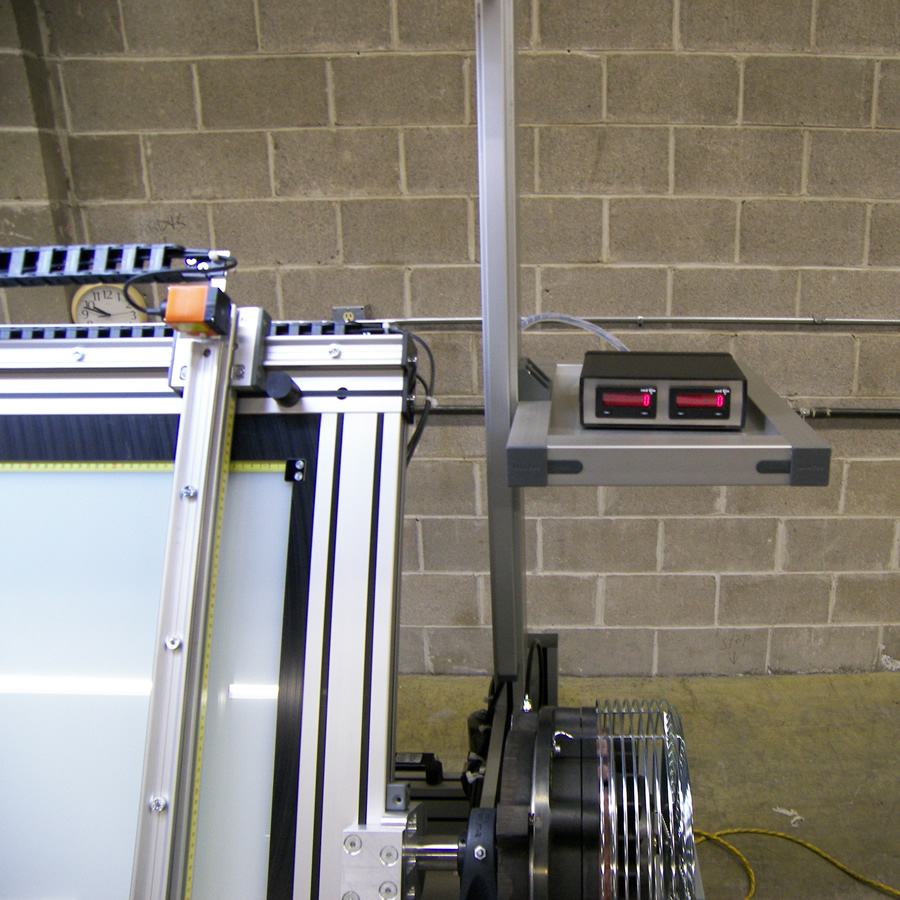

Digital readouts show real time location to operator

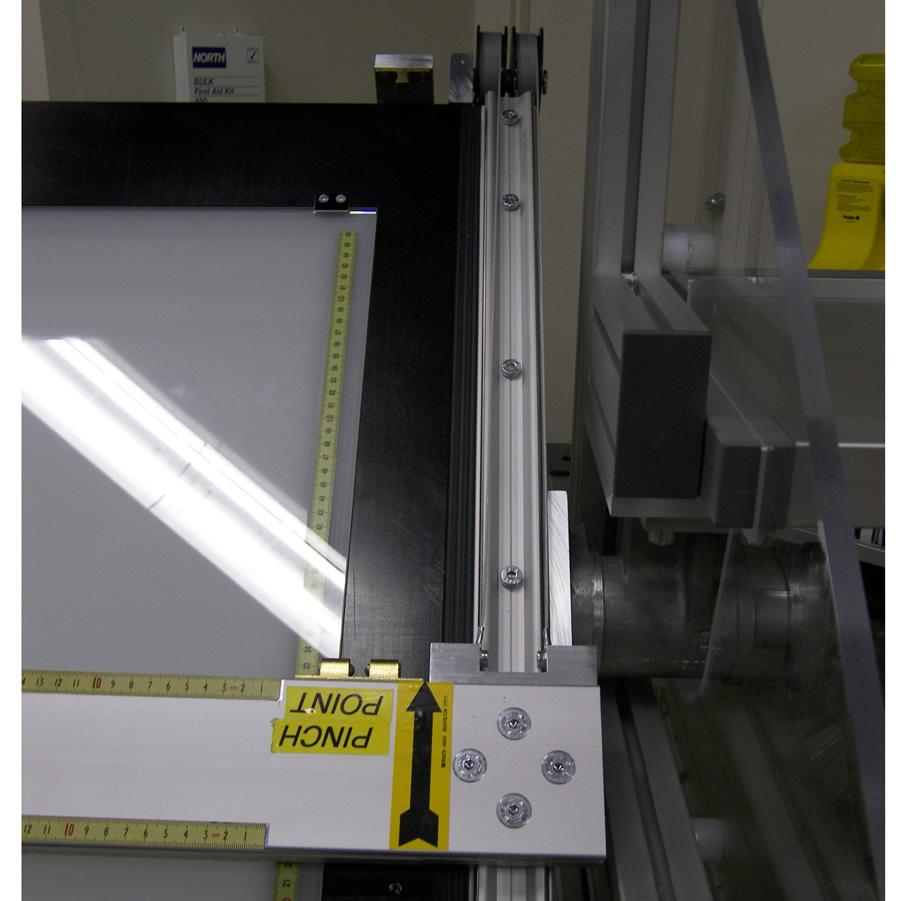

Y axis is couterbalanced using spring reels
