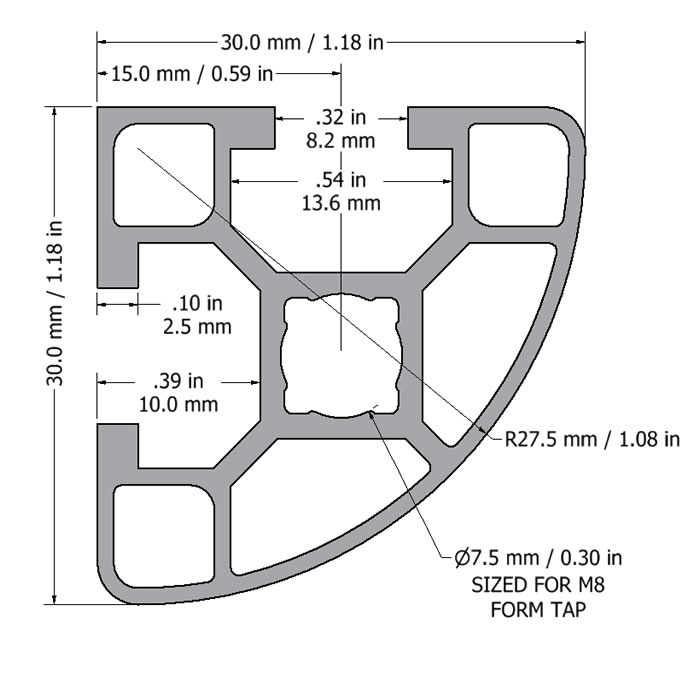

PROFILE 30 R 90°
Part. N° 20.1125
CAD DOWNLOAD ► 3D STEP | Solidworks 2013 | Inventor 2012
| APPLICATIONS | |
|---|---|
| - Light structures | |
| - Small enclosures | |
| -Tables & carts | |
| - Smaller machine guards | |
| - 30 series has special t-slots which are not suitable for most 45 series components |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - lx = | 1.233 cm4 |
| - ly = | 2.022 cm4 |
| - wx = | .822 cm3 |
| - wy = | 1.348 cm3 |
| - Weight = | .580 kg/m |
| - For Cut Charge Use Part # 25.1083 | |
| - Full Length | - 6 meters (236.22in) |
| - Packing Unit | - 54 meters |
| ASSEMBLY | |
|---|---|
| - MiniTec Power-Lock Fastener 30 | |
| - Angle 30 | |
| - Angle 30 R 90 | |
| - Cover end with End Cap 30R90, Part # 22.1144/1 | |
| - Screw Connection 30 N |
