Turning Device 45x90
Part. N° 32.2011
| APPLICATIONS |
| - Repeatable Rotary positioning |
| - Particularly useful when you want to return to the same position every time. |
| -Control the angle of you part to make assembly of electrical & control boxes more ergonomic. |
| TECHN. DATA / ITEMS SUPPLIED |
| - Qty 1, Steel spring plunger with plastic knob, Swing Arm & steel indexing plate |
| Qty 2 25mm Bronze Bushings & 25mm shaft with output flange coupling |

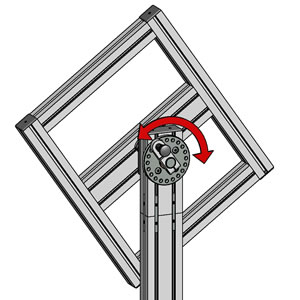

| - Ship assembled with everything shown in left picture above |
| -Hardware to mount included 45x90 profile to other profiles sold separately. |
| - Rotate on 18° Increments. Handle has built in adjustment to control starting position. |
| - Weight |
- 3.32 kg |
| - Load Max. |
- 1500N (337 lbs) |
| - Max Moment Load |
- 150 Nm |
| ASSEMBLY |
| - Unit ships fully assembled |
| - Often mounted to other profiles using t-slot bars, angles or Power-Locks. |
