Rotary Turntable

Part. N° 32.2005

CAD DOWNLOAD ►  3D STEP | | Inventor 2012

APPLICATIONS

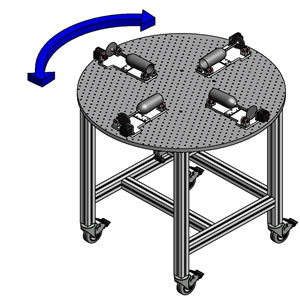

- Multi-station assembly tables with rotating tops. Can be used for multi-station assembly line production or for a single user looking to perform the same operation multiple times before tooling up for the next step.
- Lazy Susan style turntables for parts bins, tool racks etc.
TECHN. DATA / ITEMS SUPPLIED
- Zinc die casting with steel balls

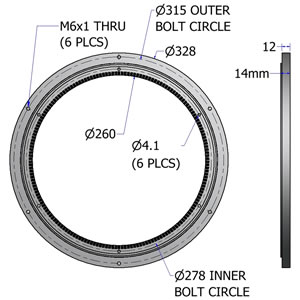

-Dimensions above may be off by a couple of mm. Verify hole pattern prior to production.
- ESD Capable
- Low maintenance
-Max axial load - 300kg (661 lbs)
- Weight - .575 kg
ASSEMBLY
- Mount inner ring to table with M4x16 SHCS (sold separately) to 45 series profiles of table.
- Mount rotating plate to M6 tapped holes in outer ring.
