Lead Screw Driven Linear Positioners

1


Simple, modular, acme screw driven positioning made
out of MiniTec's T-slotted Aluminum Profiles
Click here for full size animation

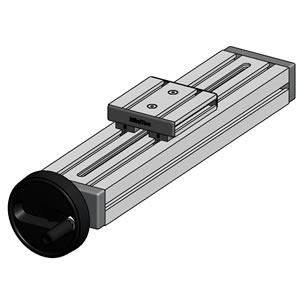

28.0187 Adjusting Unit VEN 45x90S

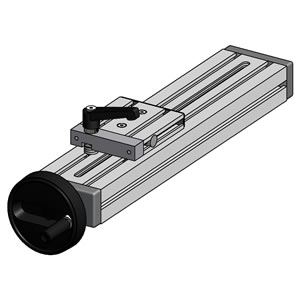

28.0187/1 Adjusting Unit VEN 45x90S With Top Lock



2

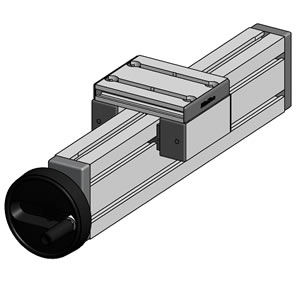

28.0185 Adjusting Unit VEN 45x90H

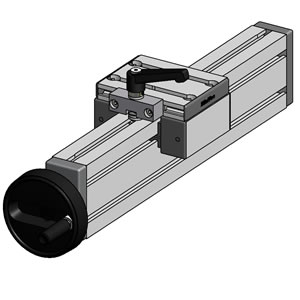

28.0185/1 Adjusting Unit VEN 45x90H
With Top Lock

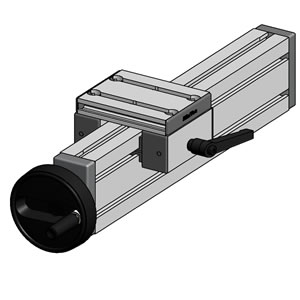

28.0185/2 Adjusting Unit VEN 45x90H
With Side Lock

3

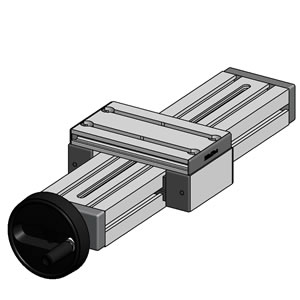

28.0188 Adjusting Unit VEN 45x90F

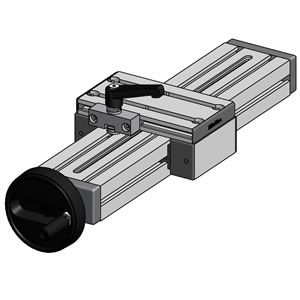

28.0188/1 Adjusting Unit VEN 45x90F
With Top Lock

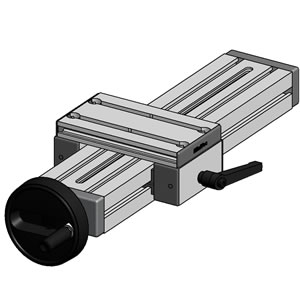

28.0188/2 Adjusting Unit VEN 45x90F
With Side Lock


4

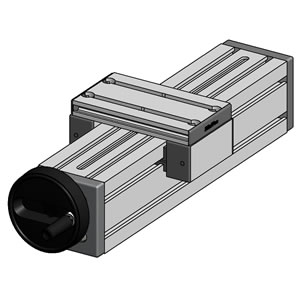

28.0186 Adjusting Unit VEN 90

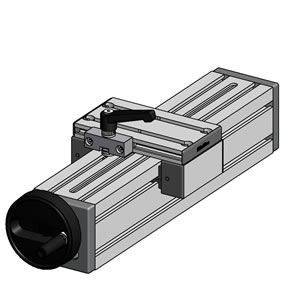

28.0186/1 Adjusting Unit VEN 90
With Top Lock

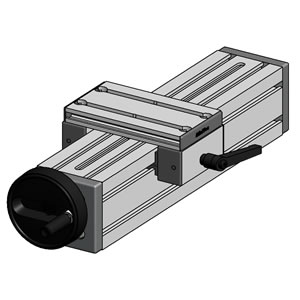

28.0186/2 Adjusting Unit VEN 90
With Side Lock



5

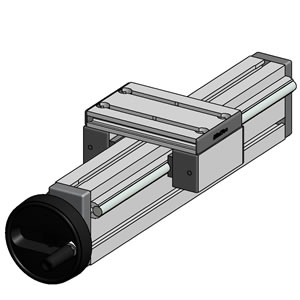

28.0182 Adjusting Unit VEW 45x90 H




28.0182/1 Adjusting Unit VEW 45x90 H
With Top Lock

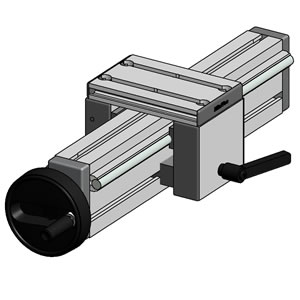

28.0182/2 Adjusting Unit VEW 45x90 H
With Side Lock

6

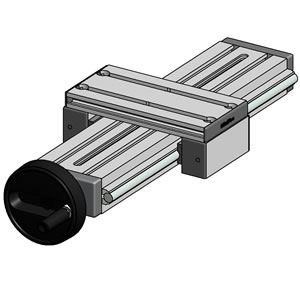

28.0181 Adjusting Unit VEW 45x90F






28.0181/1 Adjusting Unit VEW 45x90F
With Top Lock




Click Here For A Larger Animation

Showing How The Top Clamp Works

7

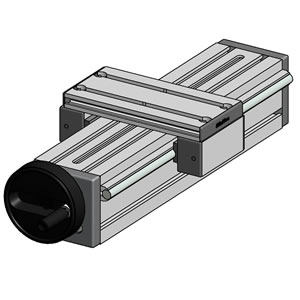

28.0183 Adjusting Unit VEW 90






28.0183/1 Adjusting Unit VEW 90
With Top Lock

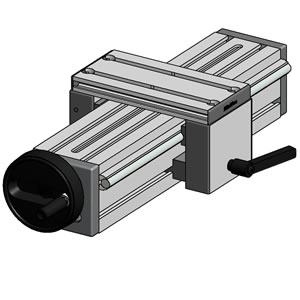

28.0183/2 Adjusting Unit VEW 90
With Side Lock



8

Small Economical Linear Positioner

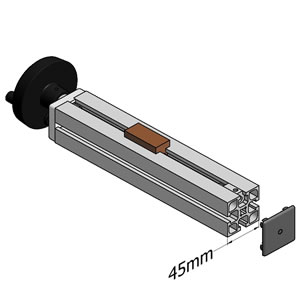

28.0354 Mini Adjusting Unit With Profile 45x45





Linear Positioner With Bronze Carriage and Nut

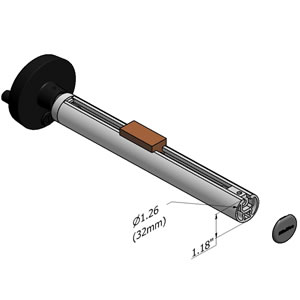

28.0353 Mini Adjusting Unit With Handle Profile 32



Linear Positioner Made From 19x32 Profile

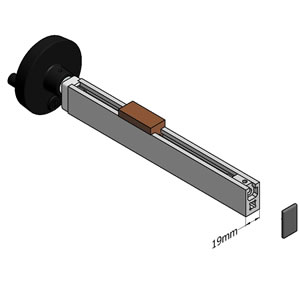

28.0351 Mini Adjusting Unit With Profile 19x32



9

Leadscrew In T-Slot

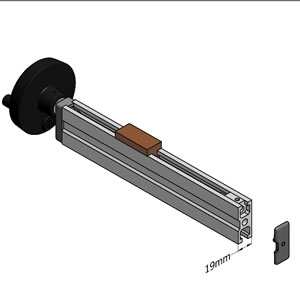

28.0352 Mini Adjusting Unit With Profile 19x45





Lead Screw, End Fittings And Bronze Nut For Any T-Slotted Profile

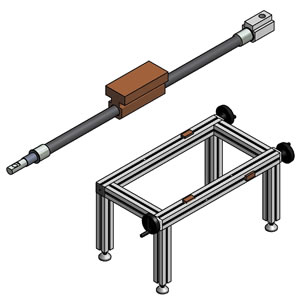

28.0350 Mini Adjusting Unit Fitting Kit

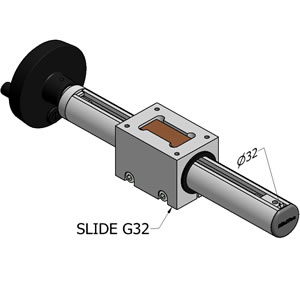

28.0355 Slide G 32

10

Slide Left Hand Right Hand Leadscrew
Left Hand Right Hand Lead Screw

Click here to see larger animation
