Fixing Kit LRK
Part. N° 28.0021
| APPLICATIONS |
| - Fastening of Ball Bearing LR12 to t-slots |

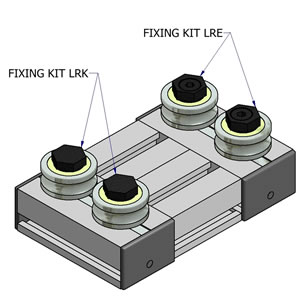

| - Use across the rail from eccentric attachment Fixing Kit LRE |

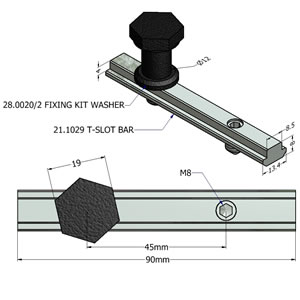

| TECHN. DATA / ITEMS SUPPLIED |
| - Qty 1, t-slot bar 90, steel zinc plated |
| - Qty 1 concentric bushing, steel, black finish |
| - Qty 1 steel washer, black finish |
| - Stainless version part # 28.0021/1 |
| - Weight |
- .100 kg |

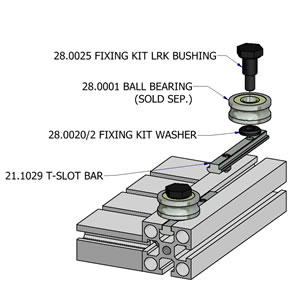

| ASSEMBLY |
| - Slide t-slot bar in from profile end |
| - Tighten M8 set screw |
| - Slide concentric bushing thru bearing and washer & tighten using 19mm crescent wrench |
| - Recommended locking torque 25 Nm |
