Timing Belt Tensioner
Part. N° 28.0090
| APPLICATIONS |

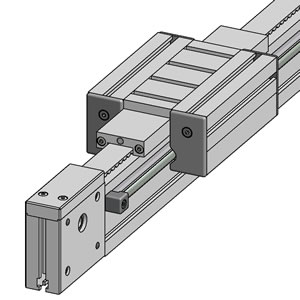

| - Tensioning of Timing Belt 32 AT 10 to LR12 series slides |
| - Use one tensioner on each side of linear slide |

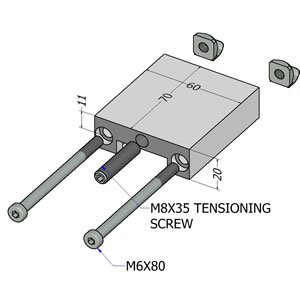

| TECHN. DATA / ITEMS SUPPLIED |
| - Housing aluminum, anodized |
| - Belt tensioning plate with 3 teeth, zinc plated steel |
| - Qty 2 M6x80 socket head caps screws |
| - Qty 2 M6 square nuts with position fixing |
| - Qty 1 M8x35 set screw for belt tensioning |
| - Weight |
- .236 kg |
| ASSEMBLY |

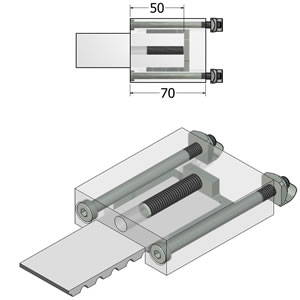

| - Engage timing belt with all belt tensioning plate teeth & slide into back of aluminum housing |
| - Press supplied M6 nuts into t-slot of slide |
| - Tight M6 screws to nuts for both tensioners |
| - Use M8 set screw for final tensioning |
