Linear Slide LR 6
Part. N° 28.0138
| APPLICATIONS |
| - Manual linear guides where smooth ball bearing travel is required |

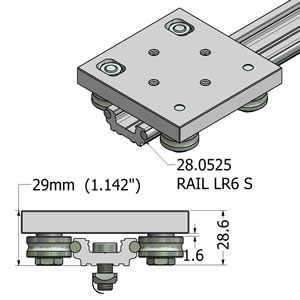

| - Use with Linear Rail LR 6 S, Part # 28.0525 |
| - Guide for sliding doors |
| - Measuring devices |
| - Linear guide for material handling |
| TECHN. DATA / ITEMS SUPPLIED |
| - Aluminum plate, anodized |

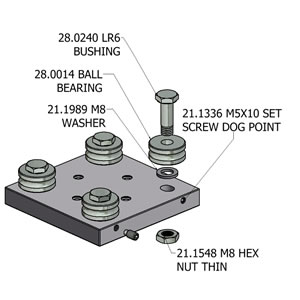

| - Qty 4 double row angular contact bearings and bushings |
| - Assembled & ready to use |
| - Qty 2 M5x10 set screws for tensioning bearings on rail |

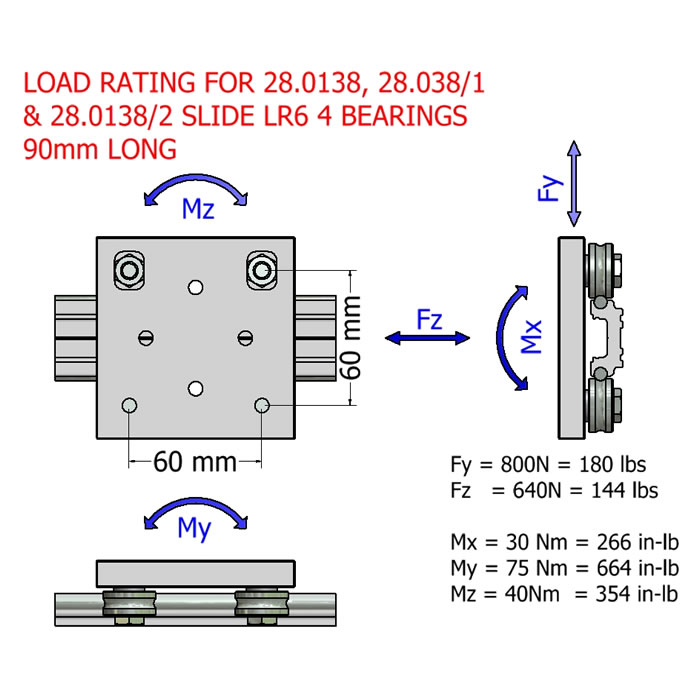

| - See load capacity data sheet |
| Max. Speed |
- 5 M/S (196"/S) |
| - Weight |
- .396 kg |
| ASSEMBLY |
| - Slide onto linear guide LR6 |
| - If required, tighten bearings to rail by tightening M5 set screws on side with metric hex key 2.5 |
| - Recommended locking torque for bushings 20 Nm |
