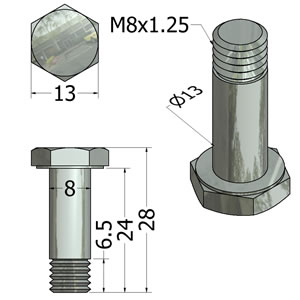

Concentric Bolt LR 6
Part. N° 28.0240
CAD DOWNLOAD ► 3D STEP | | Inventor 2012
| APPLICATIONS | |
|---|---|
| - Fasten Ball Bearing LR6 to a plate at least 12mm (1/2) thick | |
| - Closest inch screw | 5/16-18 |
| - Ø8mm = | .315 inches |
| - Length 24mm = | .945 inches |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Steel, zinc plated | |
| - Diameter | 8 mm |
| - Length | 24 mm |
| - Thread pitch | 1.25 mm |
| - Crescent Wrench | 13 mm |
| ASSEMBLY |
|---|
| - Slide thru bearing LR6 then washer & tighten onto plate |
| - Tighten screw using 13mm crescent wrench |
| - Recommended locking torque 20 Nm |
