Timing Belt 16 AT 5
Part. N° 28.0502
| APPLICATIONS |
| - Suitable with all LR6 pulleys Part # 28.0510/* |

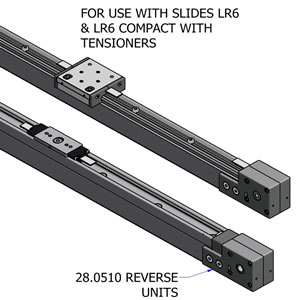

| - For use with linear slide LR 6 Z Part # 28.0138/2 |
| - Large range of linear positioning & linear motion applications |
| TECHN. DATA / ITEMS SUPPLIED |
| - Belt Polyurethane, white, steel wire reinforced |

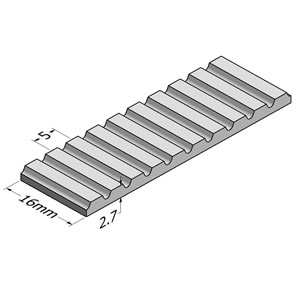

| - Belt type 16 AT 5 |
| - Can be ordered cut to size |
| - Full roll |
- 100 m |
| - Weight |
- .052 kg/m |
| - Max load |
- 1260 N |
| ASSEMBLY |

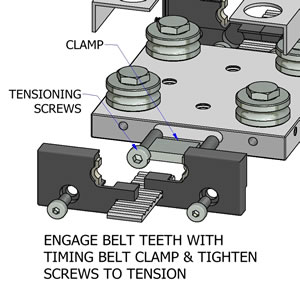

| - Insert thru timing belt pulley LR6 reverse units & attach to built in tensioners on the LR6 Z slide |
| - Belt length = 2 x rail length + 260mm |
