Plastic & Aluminum Profile End Caps





1


End Cap With Locking Dowel
Installation





45x45 Aluminum Extrusion End Cap
22.1004/1 End Cap 45x45





45x90 Aluminum Extrusion End Cap
22.1007/1 End Cap 45x90



90x90 Aluminum Extrusion End Cap

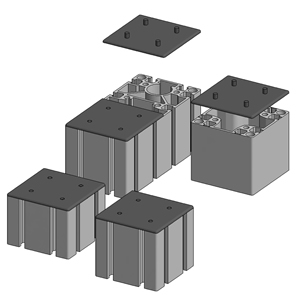

22.0983/1 End Cap 90x90

2

45x32 Aluminum Extrusion End Cap
22.1003/1 End Cap 45x32





32x32 Aluminum Extrusion End Cap
22.1002/1 End Cap 32x32



19x32 Aluminum Extrusion End Cap

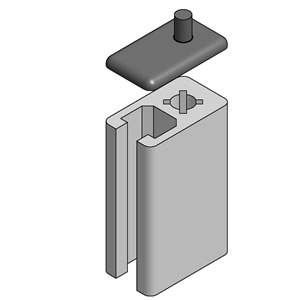

22.1220/1 End Cap 19x32

19x45 Aluminum Extrusion End Cap
22.1001/1 End Cap 19x45





3


22.1136/1 End Cap 45x19





32x32 Clamp Profile  Aluminum Extrusion End Cap
22.1032/1 End Cap 32x32 Clamp Profile

End Cap For Handle Profile 32

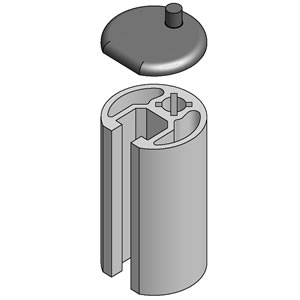

22.1162/1 End Cap Handle Profile 32 Z

45x32 Clamp Profile Aluminum Extrusion End Cap

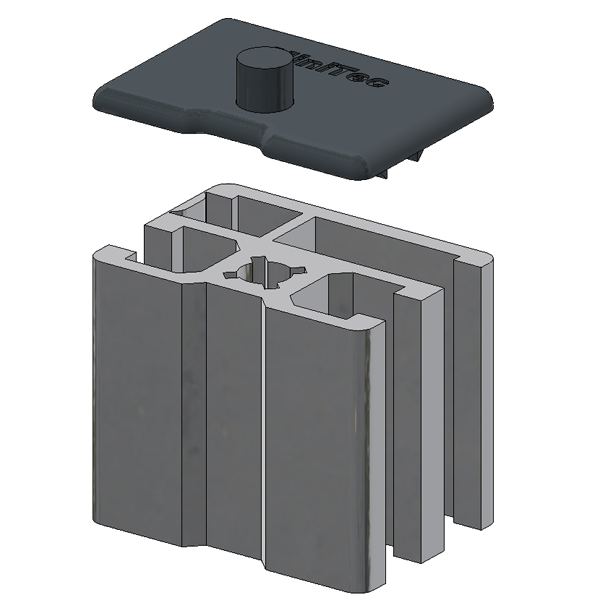

22.1046/1 End Cap Clamp Profile 45x32

4


22.1009/1 Replacement Pin For End Caps



45R90 Degree Aluminum Extrusion End Cap
22.0996/1 End Cap 45 R 90°

45/45 Deg Aluminum Extrusion End Cap
22.0995/1 End Cap 45/45°

45x45x22.5 Deg Aluminum Extrusion End Cap
22.1052/1 End Cap 45/22.5°



5

90x19 T-Slotted Extrusion End Cap
22.1014/1 End Cap 90x19





90x32 T-Slotted Extrusion End Cap

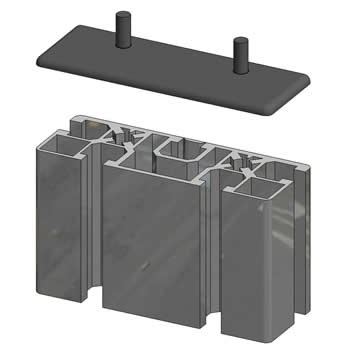

22.0982/1 End Cap 90x32Z

45x60 T-Slotted Extrusion End Cap
22.1058/1 End Cap 45x60

60x60 T-Slotted Extrusion End Cap
22.1057/1 End Cap 60x60

6

45x135 T-Slotted Extrusion End Cap
22.1092/1 End Cap 45x135 Z





45x180 T-Slotted Extrusion End Cap
22.1048/1 End Cap 45x180

32x180 T-Slotted Extrusion End Cap
22.1059/1 End Cap 32x180

Right End Cap For Handle Profile
22.1054 End Cap Right
Handle Profile

7

Left End Cap For Handle Profile
22.1055 End Cap Left
Handle Profile





Stainless Steel End Cap For 45x45 Stainless T-Slotted Profile

22.1067/5 End Cap Stainless 45x45 VA

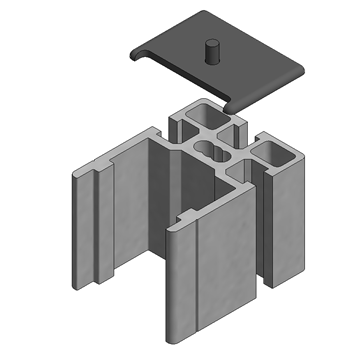

22.0979/1 End Cap For Height Adjustable Profile

End Cap For T-Slotted Electrical Conduit Profile 90

22.1045 End Cap Conduit 90 AL

8

90 R 90 Degree T-Slotted Extrusion End Cap

22.1021/1 End Cap 90 R 90°

45 R 30 Degree T-Slotted Extrusion End Cap

22.1019/1 End Cap 45 R 30°

45 R 45 Degree T-Slotted Extrusion End Cap

22.1017/1 End Cap 45 R 45°

45 R 60 Degree T-Slotted Extrusion End Cap

22.1018/1 End Cap 45 R 60°



9

End Cap For Power-Lock Access Slot On G Series Profiles

22.1056/1 End Cap G

End Cap For C'bored Hole On Strengthening Elements

22.1208/1 End Cap GL

Cap For 7mm Hole

22.1200/1 Hole Cap Ø7

Cap For 9mm Hole

22.1201/1 Hole Cap Ø9



10

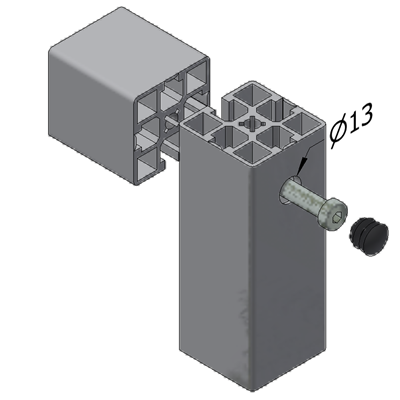

22.9100/1 Hole Cap Ø13

Cap For 15mm Hole

22.1202/1 Hole Cap Ø15

22.1137/1 End Cap 45 R4



Aluminum End Cap 19x32

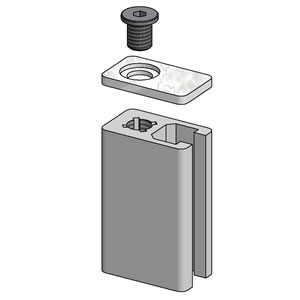

22.1060/2 End Cap 19x32 AL





11


22.1062/2 End Cap 32x32 AL


Bolt On Aluminum End Cap For 19x45 Profile

22.1064/2 End Cap 19x45 AL




22.1065/2 End Cap 45x32 AL

Bolt On Aluminum End Cap For 45x45 Profile

22.1067/2 End Cap 45x45 AL



12

22.1019/2 End Cap 45 R 30° AL

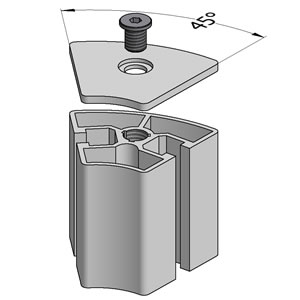

22.1017/2 End Cap 45 R 45° AL


22.1018/2 End Cap 45 R 60° AL

22.0996_2 End Cap 45R90º AL



13

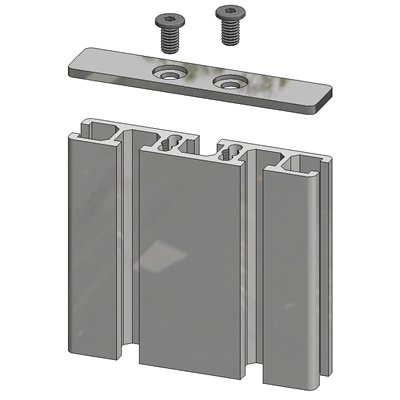

22.1014/2 End Cap 90x19 AL



Bolt On Aluminum End Cap For 45x90 Profile

22.1068/2 End Cap 45x90 AL



22.1008/2 End Cap 90x90 AL

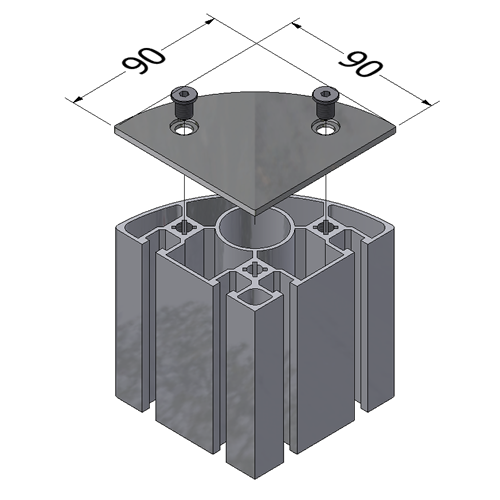

22.1021/2 End Cap 90 R 90 AL



14



32x32 Clamp Profile Aluminum Extrusion End Cap With Drilling For Barrier Machine Guards
22.1032/3 End Cap With Drilled Hole 32x32 Clamp Profile



45x32 Clamp Profile End Cap For Barrier Machine Guards With Removable Panels
22.1046/3 End Cap With Drilling Clamp Profile 45x32




How to remove doweled end caps
