Set Screws




Click here
for a larger image showing how a set screw can be used to make an threaded stud in any t-slot













Click here to see a larger animation





M4


21.9841 M4x5 Set Screw Flat Point

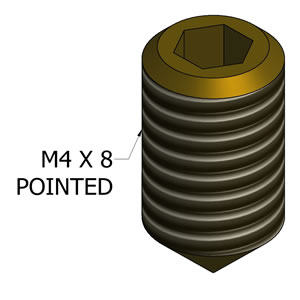

21.1314 M4x8 Set Screw Cone Point

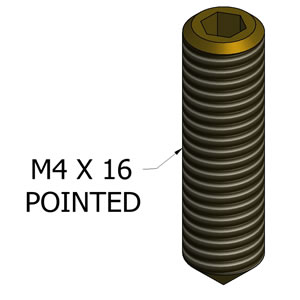

21.1314/1 M4x16 Set Screw Cone Point



M5

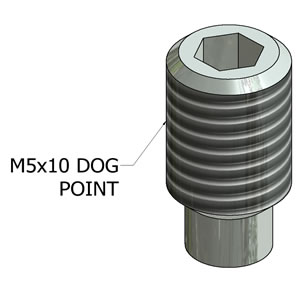

21.1336 M5x10 Set Screw Dog Point




21.1302 M5x16 Set Screw Flat Point

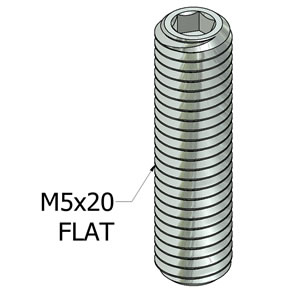

21.1300 M5x20 Set Screw Flat Point





M6


21.1380 M6x12 Set Screw Flat Point




21.1324 M6x16 Set Screw Cone Point

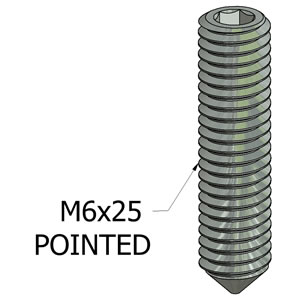

21.1335 M6x25 Set Screw Cone Point


21.1364 M6x30 Set Screw Cup Point

M8


21.1342 M8x8 Set Screw Cone Point




21.1129/1 M8x10 Set Screw Pointed

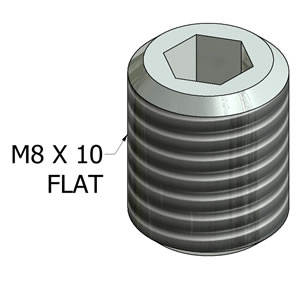

21.1306 M8x10 Set Screw Flat

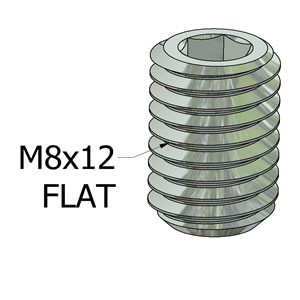

21.1598 M8x12 Set Screw Flat Point



M8


21.1303 M8x14 Set Screw Pointed

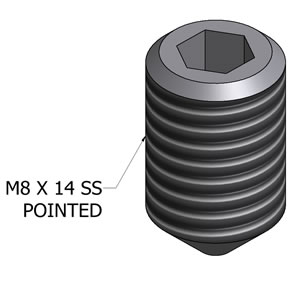

21.1303/1 M8x14 Set Screw Pointed




21.1301 M8x16 Set Screw Flat

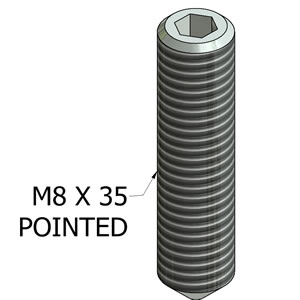

21.1304/1 M8x35 Set Screw Cone Point






Click here
to see how set screws are used to fasten our t-slot bars

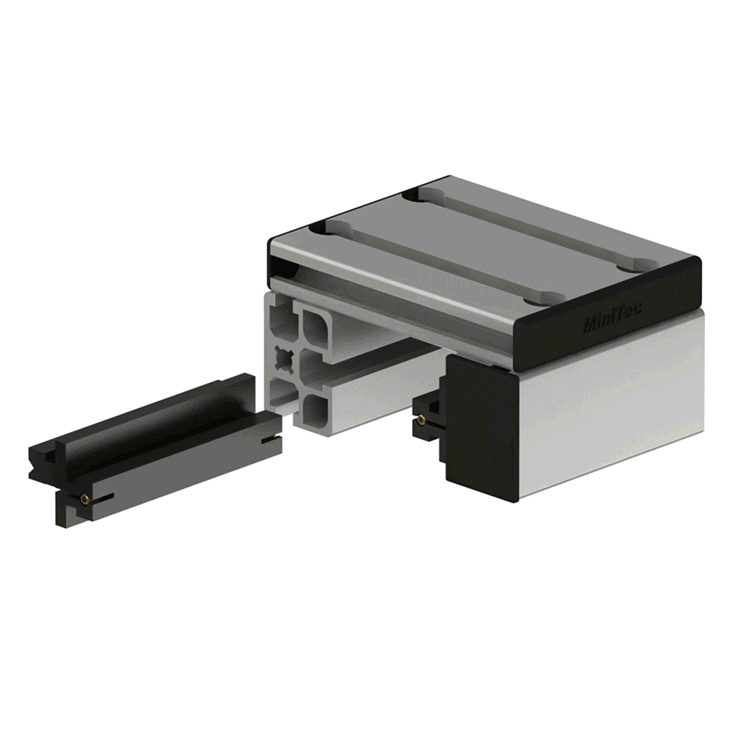

Click here to see how set screws can be used to fix our UHMW slide bars into the t-slots
