Fixing Kit LRE
Part. N° 28.0022
CAD DOWNLOAD ► 3D STEP | Solidworks 2008 | Inventor 2009
| APPLICATIONS |
|---|
| - Fastening of Ball Bearing LR12 to t-slots |
| - Use across the rail from concentric attachment Fixing Kit LRK |
| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Qty 1, t-slot bar 90, steel zinc plated | |
| - Qty 1 eccentric bushing, steel, black finish | |
| - Precision groundM8x36 socket head cap screw, steel, black finish | |
| - Qty 1 steel washer, black finish | |
| - Stainless version part # 28.0022/1 | |
| - Weight | - .100 kg |

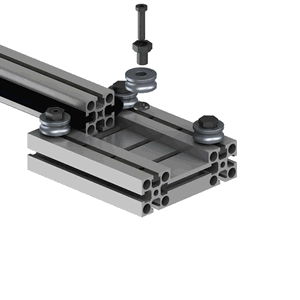

Click Here For Larger Animation
| ASSEMBLY | |
|---|---|
| - Slide t-slot bar in from profile end | |
| - Tighten M8 set screw | |
| - Slide M8 shoulder bolt thru eccentric bushing, bearing and washer, then tighten using 5mm hex key | |
| - Recommended locking torque 25 Nm |
