	Ball Bearing Linear Systems LR 16			Linear System LR Technical Data

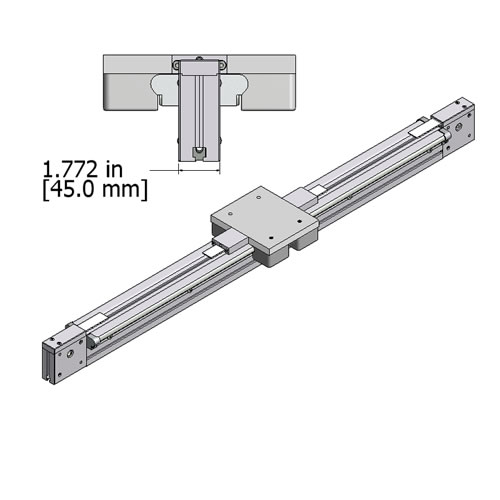

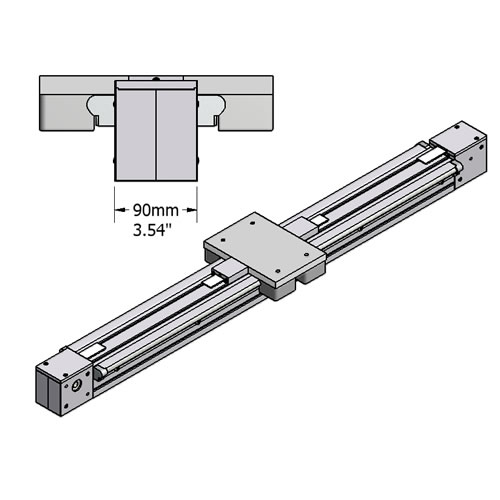

1	SP020613-1 Linear System T45 LR16 Complete linear actuator		SP011713-2 Linear System T90 LR16 Complete linear actuator

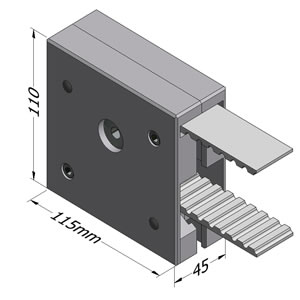

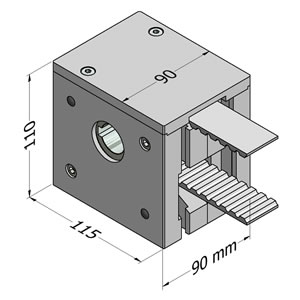

2	28.0614 Timing Belt Pulley T45		28.0082 Timing Belt Pulley T90	28.0082/1 Timing Belt Pulley T90 Z

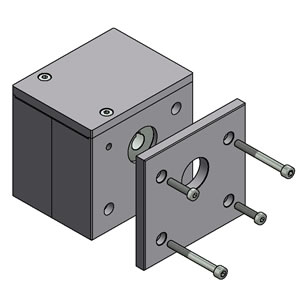

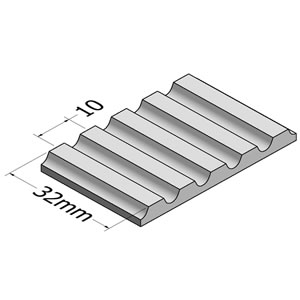

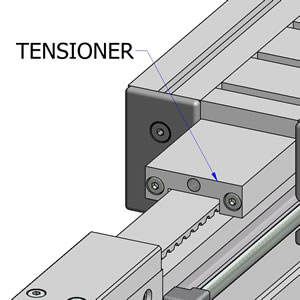

7	28.0112/9 Adaptor Plate T45/90 Standard	28.0090 Timing Belt Tensioner	28.0270 Slide Clamp Unit (Top)	28.0093 Timing Belt 32 AT 10
8	28.0810 Slide LR16 - 45	28.0811 Slide LR 16 - 90	50.1726 Ball Bearing LR 16	28.0815 End Cap LR 16
9	17.1743 Shaft 16	28.0019 Shaft Supporting Profile LR 16	28.0808 Shaft Retention Device LR 16 Right	28.0809 Shaft Retention Device LR 16 Left
10

Ball Bearing Linear Systems LR 16
